ID
1360775
$ 248.14
1-2 weeks delivery time
-
+
The Barton N07631 is a Size 7 fiddle block with swivel, becket and cam, featuring twin inline Ø44 mm and Ø72 mm plain bearing sheaves for ropes up to 14 mm. Weighing 668 g, it is engineered for extreme load applications with a working load of 1250 kg and break load of 2500 kg, making it ideal for heavy-duty purchase systems with integrated line control.
- Description
- Ask a Question
-

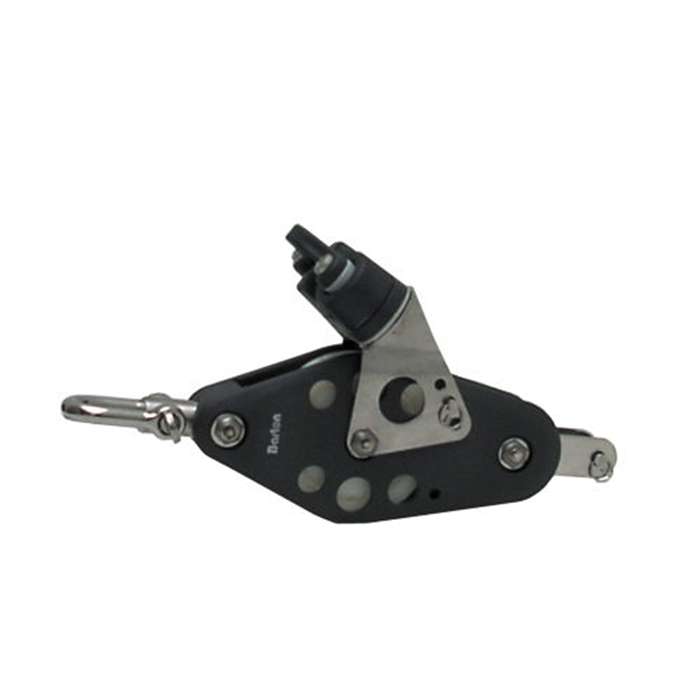

Barton N07631 – Fiddle Block Swivel with Becket and Cam Size 7 72mm, Plain Bearing, Ø44/72mm Sheaves, Max Rope 14mm
The Barton N07631 Fiddle Block with Swivel, Becket and Cam is part of the Size 7 (70 mm) high load cruising range, engineered for superior strength and performance. It features a fiddle configuration with two inline sheaves (44 mm and 72 mm), delivering an efficient and compact solution for multi-purchase systems under high loads.
The plain bearing system provides maximum strength and durability in high-load static applications. The swivel head ensures optimal alignment under changing load directions, while the integrated becket enables secure rope termination. The cam cleat allows fast and reliable line locking, making this block ideal for controlled trimming systems. Built with glass fibre reinforced side plates and a 316 stainless steel internal frame, it ensures long-term reliability in demanding marine environments.
Key Features
- Fiddle block with Ø44 mm and Ø72 mm sheaves
- Integrated cam cleat for quick and secure line control
- Swivel head for optimal load alignment
- Becket for fixed line termination
- Plain bearing system for maximum load capacity
- Heavy-duty construction for extreme load applications
- Robust design – 668 g
Technical Specifications
Part Number N07631 Block Type Fiddle Block – Swivel + Becket + Cam Size Size 7 (70 mm) Sheave Configuration Fiddle (2 sheaves) Sheave Diameter 44 mm / 72 mm Sheave Size 72 mm x 20 mm (2 53/64" x 3/4") Bearing Type Plain Bearing Max Rope Diameter 14 mm (9/16") Safe Working Load (SWL) 1250 kg (2750 lbs) Break Load 2500 kg (5500 lbs) Weight 668 g Dimensions 250 × 130 × 81 mm
Applications
- Mainsheet and vang systems
- Extreme load purchase systems with integrated locking
- Control and trimming systems
- Large cruising and racing yachts
The Barton Size 7 plain bearing fiddle blocks with cam are engineered for maximum strength and controlled performance, ensuring reliable operation in demanding high-load sailing systems.
-
