ID
1360759
$ 54.18
1-2 weeks delivery time
-
+
The Barton N06111 is a Size 6 single fixed eye block with becket and a 64 mm plain bearing sheave, designed for ropes up to 14 mm. Weighing 208 g, it is optimized for high-load cruising applications with a safe working load of 1000 kg and break load of 2000 kg, making it ideal for multi-purchase systems with secure rope termination.
- Description
- Ask a Question
-

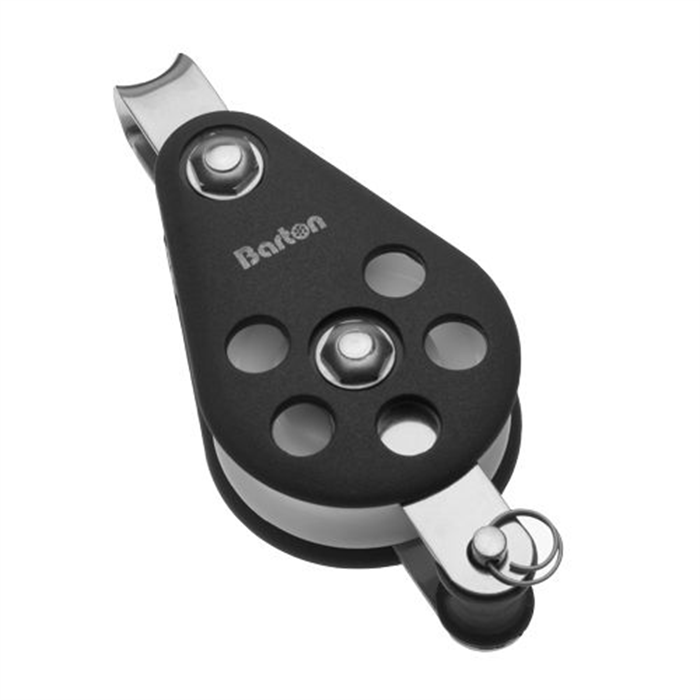

Barton N06111 – Single Fixed Eye Block with Becket Size 6 64mm, Plain Bearing, Ø64mm Sheave, Max Rope 14mm
The Barton N06111 Single Fixed Eye Block with Becket is part of the heavy-duty Size 6 (64 mm) high load cruiser range, engineered for strength and durability on larger cruising and racing yachts. Featuring a plain bearing sheave, this block is optimized for high static load applications and long-term reliability.
The fixed eye attachment ensures secure mounting in fixed rigging positions, while the integrated becket provides a reliable point for rope termination in multi-purchase systems. Constructed with high-grade injection moulded side plates and marine-grade 316 stainless steel load components, the block is through-bolted and riveted for maximum strength and durability.
Key Features
- Single sheave block with fixed eye and integrated becket
- Plain bearing system optimized for high-load applications
- Designed for larger cruising and racing yachts
- Secure rope termination via becket
- High-grade injection moulded side plates
- 316 stainless steel internal load components
- Through-bolted and riveted construction for superior strength
- Weight – 208 g
Technical Specifications
Part Number N06111 Block Type Single Fixed Eye + Becket Size Size 6 (64 mm) Sheave Diameter 64 mm x 18 mm (2 1/2" x 45/64") Bearing Type Plain Bearing Number of Sheaves Single Max Rope Diameter 14 mm (9/16") Safe Working Load (SWL) 1000 kg (2200 lbs) Break Load 2000 kg (4400 lbs) Weight 208 g Dimensions 148 × 67 × 36 mm
Applications
- Multi-purchase systems with rope termination
- Heavy-duty control line setups
- Mainsheet and traveller systems
- Cruising and racing yachts
- Fixed rigging points requiring high strength
The Barton Size 6 block range is designed as a high load cruiser series for larger yachts, offering reinforced construction, stainless steel load components, and reliable performance under increased loads.
-
