ID
1360886
$ 65.16
1-2 weeks delivery time
-
+
The Barton N16110 is a Size 6 single fixed eye block with a 64 mm ball bearing sheave, designed for ropes up to 14 mm. Weighing 175 g, it delivers smooth low-friction performance with a safe working load of 1000 kg and break load of 2000 kg, making it ideal for dynamic high-load applications on larger cruising and racing yachts.
- Description
- Ask a Question
-

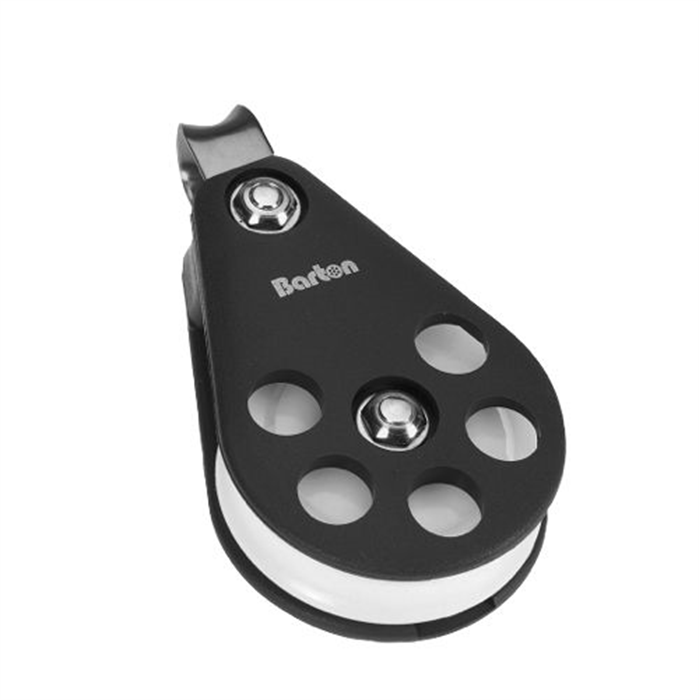

Barton N16110 – Single Fixed Eye Block Size 6 64mm, Ball Bearing, Ø64mm Sheave, Max Rope 14mm
The Barton N16110 Single Fixed Eye Block is part of the heavy-duty Size 6 (64 mm) high load cruiser range, engineered for high-performance sailing applications. Featuring a ball bearing sheave, this block provides smooth, low-friction operation, making it ideal for dynamic systems requiring frequent adjustment.
The fixed eye attachment ensures secure and stable mounting in fixed rigging positions. Constructed with high-grade injection moulded side plates and marine-grade 316 stainless steel load components, the block is through-bolted and riveted for maximum strength and durability in demanding marine environments.
Key Features
- Single sheave block with fixed eye attachment
- Ball bearing system for smooth, low-friction performance
- Designed for larger cruising and racing yachts
- Stable mounting with fixed eye configuration
- High-grade injection moulded side plates
- 316 stainless steel internal load components
- Through-bolted and riveted construction for superior strength
- Optimized for dynamic load handling
- Weight – 175 g
Technical Specifications
Part Number N16110 Block Type Single Fixed Eye Size Size 6 (64 mm) Sheave Diameter 64 mm x 18 mm (2 1/2" x 45/64") Bearing Type Ball Bearing Number of Sheaves Single Max Rope Diameter 14 mm (9/16") Safe Working Load (SWL) 1000 kg (2200 lbs) Break Load 2000 kg (4400 lbs) Max Rolling Load 700 kg (1543 lbs) Weight 175 g Dimensions 120 × 67 × 36 mm
Applications
- Dynamic control line systems
- Mainsheet and traveller setups
- Cruising and racing yachts
- Fixed rigging points requiring smooth operation
- Applications with frequent load adjustments
The Barton Size 6 block range is designed as a high load cruiser series for larger yachts, offering reinforced construction, stainless steel load components, and reliable performance under increased loads.
-
