The Barton 18030 is a 1.8 m drilled aluminium traveller track (Size 0, 16 mm width) designed for dinghy and small boat applications. Featuring compatibility with recirculating Delrin ball bearing traveller systems and pre-drilled fixing points at 50 mm centres, it ensures smooth operation and reliable load handling up to 130 kg.
- Description
- Ask a Question
-
Barton 18030 – Drilled Track Size 0 1.8m, 16mm Traveller Track, SWL 130kg

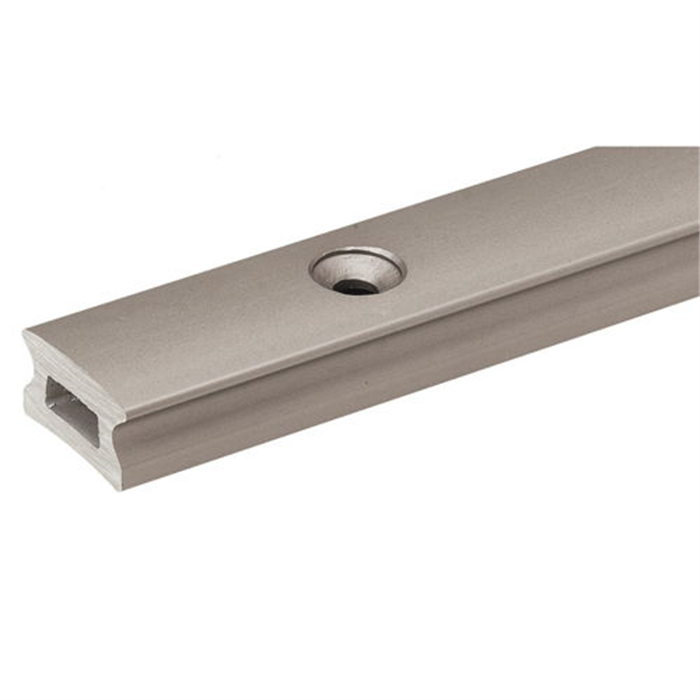

The Barton 18030 Drilled Track is a Size 0 (16 mm) aluminium traveller track designed for dinghy and dayboat applications. With a length of 1.8 m, it provides an extended track solution for wider cockpit layouts and improved traveller range.
This track is part of Barton’s recirculating ball bearing traveller system, using proven Delrin ball technology to ensure smooth and efficient traveller movement under load.
Manufactured from marine-grade aluminium with anodised finish, the track offers excellent corrosion resistance and long-term durability in marine environments.
For easy installation, the track is drilled and countersunk at 50 mm centres, with the first fixing positioned 50 mm from the track end.
Key Features
- Size 0 traveller track – 16 mm width
- Extended 1.8 m length for wider installations
- Compatible with recirculating Delrin ball bearing systems
- Marine-grade aluminium with anodised finish
- Pre-drilled and countersunk at 50 mm centres
- Smooth and efficient traveller operation
Technical Specifications
Part Number 18030 Product Type Drilled Traveller Track Track Size Size 0 (16 mm) Length 1.8 m Safe Working Load (SWL) 130 kg (286 lbs) Fastenings 4 mm Weight 681 g Dimensions 1800 × 20 × 12 mm
Applications
- Dinghy and dayboat mainsheet traveller systems
- Wider cockpit traveller installations
- Lightweight performance sailing setups
- Replacement or upgrade of existing traveller tracks
According to the Barton dinghy traveller system specification, this 16 mm recirculating ball bearing system provides smooth operation and supports loads up to 130 kg, making it ideal for small craft and performance sailing :contentReference[oaicite:0]{index=0}.
The Barton drilled traveller track is engineered for smooth performance, durability, and precise installation, ensuring reliable operation in compact sailing systems.
-
