ID
1360334
$ 170.52
1-2 weeks delivery time
-
+

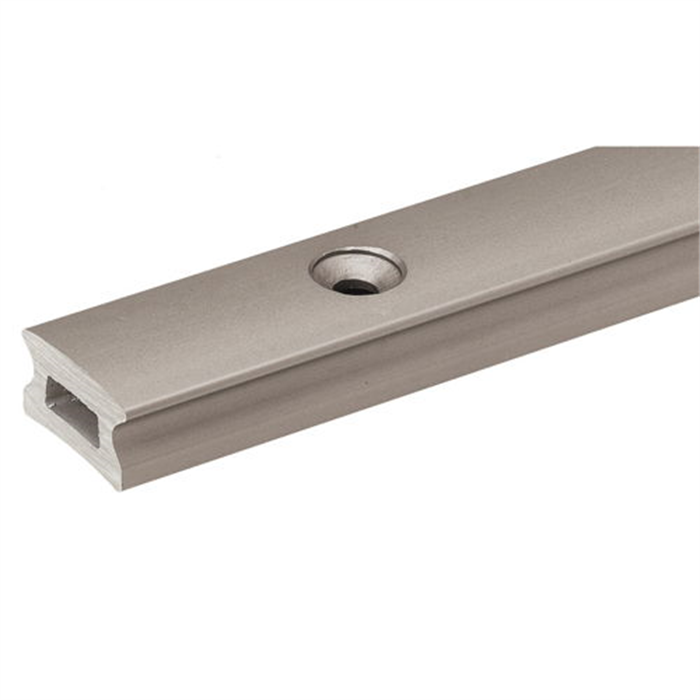

The Barton 18040 is a Size 0 drilled aluminium track designed for 16 mm dinghy traveller systems, with a length of 2.4 metres. Engineered for lightweight performance, it features a recirculating ball bearing system compatibility and provides holding loads up to 130 kg. The track is manufactured from marine-grade aluminium with a durable grey or black anodised finish, ensuring smooth operation and corrosion resistance. It is drilled and countersunk at 50 mm centres with the first hole positioned 50 mm from the end. Weight is 908 g with overall dimensions of 2400 × 20 × 12 mm.
- Description
- Ask a Question
-
Barton 18040 - Drilled Track Size 0 2.4m – 16mm Dinghy Traveller Track, Aluminium, Grey/Black Anodised, Pre-Drilled 50mm Centres
The Barton 18040 Drilled Track Size 0 is a lightweight aluminium track designed specifically for 16 mm dinghy traveller systems. With a 2.4 metre length, it is ideal for small craft and performance dinghies requiring efficient and responsive traveller setups.
This track is part of Barton’s recirculating ball bearing traveller range, utilising proven Delrin ball technology to ensure smooth, low-friction movement. Manufactured from marine-grade aluminium and finished with a durable grey or black anodised coating, it offers excellent corrosion resistance and long-term reliability.
Key Features
- Size 0 traveller track for 16 mm dinghy systems
- Length 2.4 m for extended traveller travel range
- Compatible with recirculating ball bearing traveller cars
- Lightweight marine-grade aluminium construction
- Grey or black anodised finish for durability
- Pre-drilled and countersunk at 50 mm centres
- First fixing hole positioned 50 mm from track end
- Holding load up to 130 kg
Technical Specifications
Part Number 18040 Product Type Drilled Traveller Track Track Size Size 0 (16 mm system) Length 2400 mm Dimensions 2400 × 20 × 12 mm Drilling 50 mm centres, countersunk First Hole Offset 50 mm from track end Material Marine-grade aluminium, anodised Finish Grey or black anodised Weight 908 g Safe Working Load (SWL) 130 kg (286 lbs) Fastenings 4 mm
Applications
- Dinghy mainsheet traveller systems
- Lightweight sailing craft and dayboats
- Small yacht traveller installations
- Performance dinghy rigging setups
The Barton 16 mm dinghy traveller track system provides a compact, efficient and reliable solution for small boat applications, combining lightweight construction with smooth operation and precise control under load.
-
