Tecnoseal Yamaha Outboard Anode Kit 150–200 HP Counter Rotation

Tecnoseal Yamaha Outboard Anode Kit 150–200 HP Counter Rotation – Zinc, Aluminium or Magnesium

The Tecnoseal KITYAMAHA150-200CR series consists of sacrificial anode kits designed for Yamaha 150–200 HP counter-rotating outboard motors. Each kit contains two replacement anodes manufactured from the same sacrificial material, together with mounting hardware. These kits are intended for corrosion protection maintenance of compatible Yamaha outboard components.

Each kit includes one Tecnoseal 01112 series anode and one Tecnoseal 01134 series counter-rotation trim tab anode. The components provide sacrificial corrosion protection by corroding preferentially during service, helping reduce galvanic corrosion of protected metallic outboard parts.

Three material versions are available: zinc, aluminium and magnesium. The zinc kit weighs 1.69 kg (3.73 lbs), the aluminium kit weighs 0.73 kg (1.61 lbs) and the magnesium kit weighs 0.52 kg (1.15 lbs). Mounting hardware is included with each kit.

Technical Specifications

Available Kit Versions

Kit Contents

Individual Kit Components

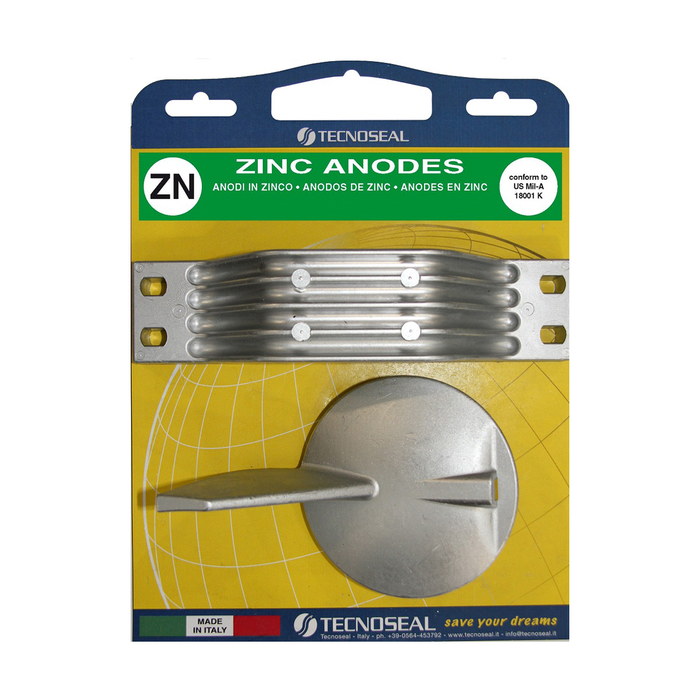

• Zinc Kit – KITYAMAHA150-200CR:
  • 1 × Tecnoseal 01112 zinc anode
  • 1 × Tecnoseal 01134 zinc counter-rotation trim tab anode
  • Mounting hardware included
• Aluminium Kit – KITYAMAHA150-200CRAL:
  • 1 × Tecnoseal 01112AL aluminium anode
  • 1 × Tecnoseal 01134AL aluminium counter-rotation trim tab anode
  • Mounting hardware included
• Magnesium Kit – KITYAMAHA150-200CRMG:
  • 1 × Tecnoseal 01112MG magnesium anode
  • 1 × Tecnoseal 01134MG magnesium counter-rotation trim tab anode
  • Mounting hardware included

Packaging Options

The Tecnoseal catalogue lists the following packaging formats for these anode kits:

• Branded box
• Blister pack for hanging display
• Polybag
• Skin pack for hanging display

The packaging format supplied with an individual order should be confirmed separately.

Key Features

• Designed for compatible Yamaha 150–200 HP counter-rotating outboard motors.
• Two-piece sacrificial anode kit.
• Includes Tecnoseal 01112 and 01134 series components.
• Counter-rotation trim tab anode included.
• Mounting hardware supplied with each kit.
• Available in zinc, aluminium and magnesium versions.
• Zinc kit: 1.69 kg.
• Aluminium kit: 0.73 kg.
• Magnesium kit: 0.52 kg.
• Helps protect metallic outboard components against galvanic corrosion.

Compatibility Note: Before ordering, verify the Yamaha outboard model, rotation direction and individual anode part numbers included in the kit. The Tecnoseal 01134 series is specified for counter rotation and differs from the standard-rotation Tecnoseal 01133 series. The stated 150–200 HP range does not imply compatibility with every Yamaha outboard within that range. Select the appropriate sacrificial anode material according to Yamaha's recommendations and operating water conditions.
