$ 106.23
1-2 weeks delivery time
-
+

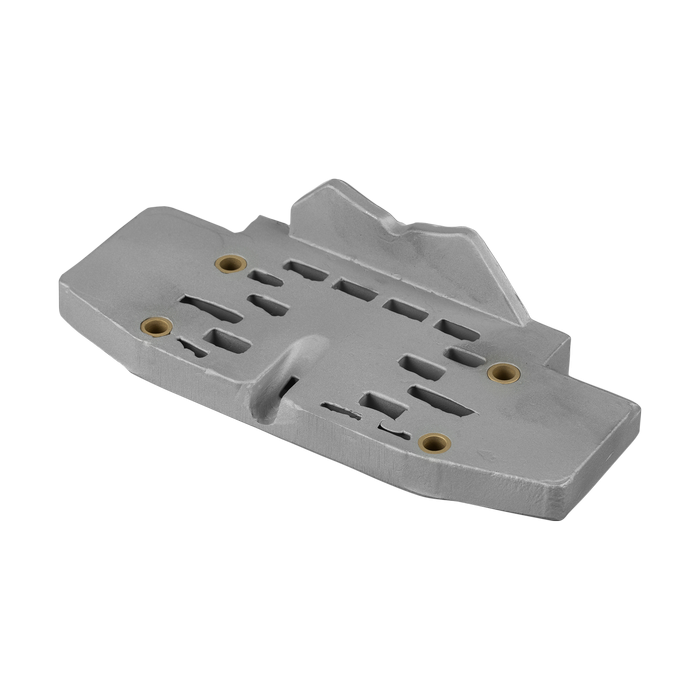

The Tecnoseal 00902 is a zinc sacrificial housing anode designed for OMC Stringer Drive systems, corresponding to original OEM part number 982438. It measures 185 mm in overall length, 80 mm in width and 38 mm in height, with a longitudinal mounting hole spacing of 101 mm and 7 mm mounting hole diameter. Weighing 0.97 kg (2.14 lbs), the anode features a shaped rectangular body with a waffle-pattern structure and four mounting holes, providing sacrificial corrosion protection for compatible drive housing components.
- Description
- Ask a Question
-

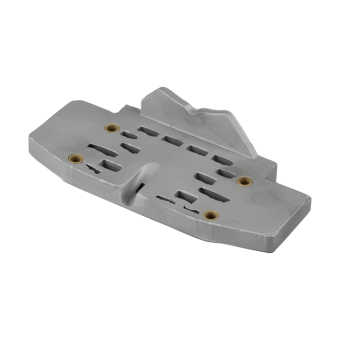

Tecnoseal 982438 Zinc OMC Stringer Drive Housing Anode
The Tecnoseal 00902 is a zinc sacrificial anode designed for OMC Stringer Drive housing applications. It corresponds to original OMC part number 982438 and provides sacrificial corrosion protection for compatible marine drive housing components.
The anode features a shaped rectangular body with extended side sections, a waffle-pattern structure and four mounting holes. It measures 185 mm in overall length, 80 mm in width and 38 mm in height. The longitudinal mounting hole spacing is 101 mm, with a mounting hole diameter of 7 mm. The anode weighs 0.97 kg (2.14 lbs).
Technical Specifications
Manufacturer Tecnoseal Tecnoseal Part Number 00902 OEM Reference OMC 982438 Product Type Drive Housing Anode Material Zinc Compatibility OMC Stringer Drive Weight 0.97 kg (2.14 lbs)
Dimensions
Dimension Measurement Overall Length (l) 185 mm (7.28") Width (a) 80 mm (3.15") Overall Height (h) 38 mm (1.50") Longitudinal Mounting Hole Spacing (i) 101 mm (3.98") Mounting Hole Diameter (Ø) 7 mm (0.28")
Key Features
- Zinc sacrificial anode for OMC Stringer Drive housing corrosion protection.
- Corresponds to original OMC part number 982438.
- Shaped rectangular body with extended side sections and waffle-pattern structure.
- Four mounting holes with a longitudinal spacing of 101 mm.
- Overall dimensions: 185 × 80 × 38 mm.
- Mounting hole diameter: 7 mm.
-
