ID
1404207
$ 58.15
1-2 weeks delivery time
-
+

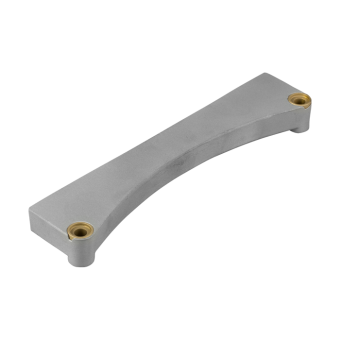

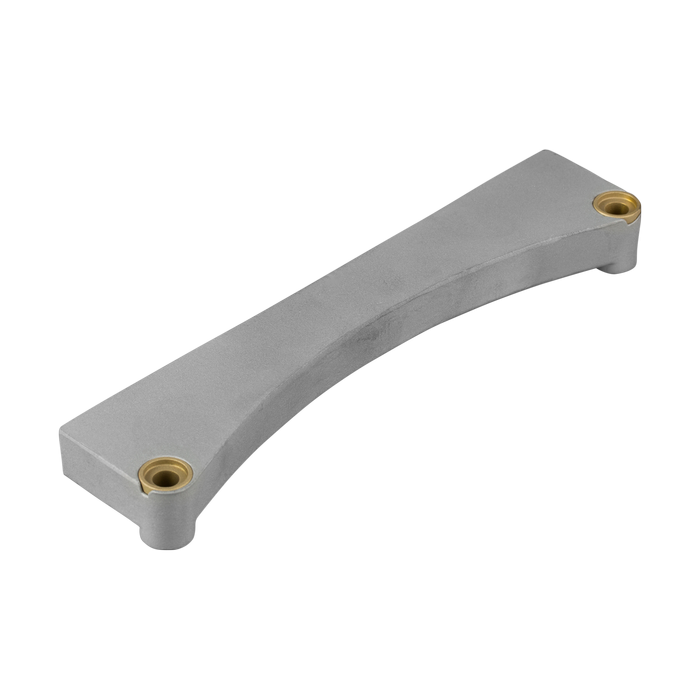

The Tecnoseal 00900 is a zinc waffle bar sacrificial anode for OMC 40–50 HP marine engines, replacing original OEM part number 976669. It measures 193 mm in length, 43 mm in width and 17 mm in height, with 177 mm mounting hole spacing and 7 mm mounting hole diameter. Weighing 0.45 kg (0.99 lbs), the anode features a curved profile with two mounting points and provides sacrificial corrosion protection for compatible engine components.
- Description
- Ask a Question
-
Tecnoseal 976669 Zinc OMC Waffle Bar Anode for 40–50 HP Engines
The Tecnoseal 00900 is a zinc sacrificial waffle bar anode designed for OMC 40–50 HP marine engines. It corresponds to original OMC part number 976669 and provides sacrificial corrosion protection for compatible engine components.
The anode has a curved waffle bar profile with two mounting holes. It measures 193 mm in overall length, 43 mm in width and 17 mm in height. The mounting holes are spaced 177 mm apart and have a diameter of 7 mm. The anode weighs 0.45 kg (0.99 lbs).
Technical Specifications
Manufacturer Tecnoseal Tecnoseal Part Number 00900 OEM Reference OMC 976669 Product Type Waffle Bar Anode Material Zinc Engine Compatibility OMC 40–50 HP Weight 0.45 kg (0.99 lbs)
Dimensions
Dimension Measurement Overall Length (l) 193 mm (7.60") Width (a) 43 mm (1.69") Height (h) 17 mm (0.67") Mounting Hole Spacing (i) 177 mm (6.97") Mounting Hole Diameter (Ø) 7 mm (0.28")
Key Features
- Zinc sacrificial anode for marine engine corrosion protection.
- Designed for OMC 40–50 HP engines.
- Corresponds to OEM part number OMC 976669.
- Curved waffle bar profile with two mounting holes.
- Overall dimensions: 193 × 43 × 17 mm.
- Mounting hole spacing: 177 mm; hole diameter: 7 mm.
-
