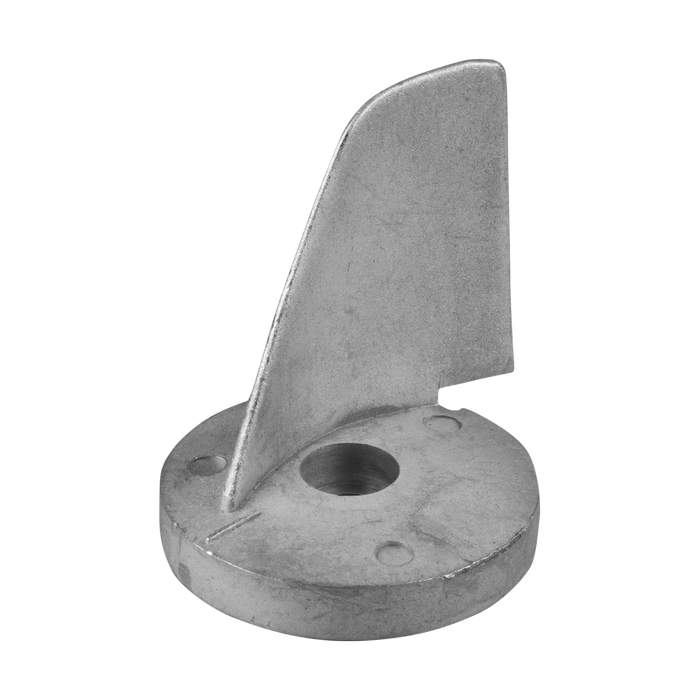

The Tecnoseal 01906 is a zinc sacrificial trim tab anode designed for Selva 25-40HP outboard engines, corresponding to OEM part number 2500065. It features a circular mounting base with an integrated vertical fin, measuring 46 mm in overall length (l), 38 mm in height (h) and 40 mm in base diameter (Ø). Additional dimensions include a base height (h1) of 9 mm, a 10 mm recess diameter (Ø1) and a 6.50 mm mounting hole diameter (Ø2). Weighing 0.09 kg (0.20 lbs), the anode helps protect compatible outboard components against galvanic corrosion.
- Description
- Ask a Question
-

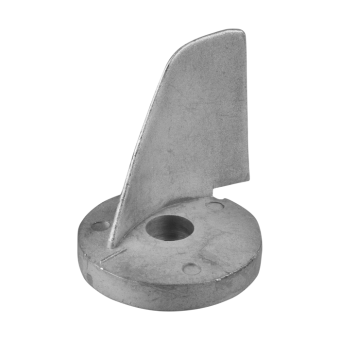

Tecnoseal 2500065 Selva 25-40HP Zinc Trim Tab Anode Ø40 mm
The Tecnoseal 01906 is a zinc sacrificial trim tab anode designed for Selva outboard engines rated from 25 to 40 HP. It corresponds to Selva OEM part number 2500065 and helps protect compatible submerged engine components against galvanic corrosion.
The anode features a circular mounting base with an integrated vertical fin. It measures 46 mm in overall length and 38 mm in height, with a base diameter of 40 mm. The base height (h1) is 9 mm, while the mounting recess diameter (Ø1) is 10 mm and the through-hole diameter (Ø2) is 6.50 mm. Its weight is 0.09 kg (0.20 lbs).
Technical Specifications
Manufacturer Tecnoseal Tecnoseal Part Number 01906 Product Type Trim Tab Anode Material Zinc Engine Brand Selva Engine Power Range 25-40 HP OEM Part Number 2500065 Weight 0.09 kg (0.20 lbs) Overall Length (l) 46 mm (1.81 in) Height (h) 38 mm (1.50 in) Base Height (h1) 9 mm (0.35 in) Base Diameter (Ø) 40 mm (1.57 in) Recess Diameter (Ø1) 10 mm (0.39 in) Mounting Hole Diameter (Ø2) 6.50 mm (0.26 in)
Compatibility and References
- Engine Manufacturer: Selva
- Engine Power: 25-40 HP
- Application: Outboard Engine Trim Tab
- Selva OEM Reference: 2500065
- Tecnoseal Part Number: 01906
Key Features
- Zinc sacrificial trim tab anode for Selva 25-40HP outboard engines.
- Helps protect compatible submerged engine components against galvanic corrosion.
- Circular mounting base with integrated vertical fin.
- Overall length: 46 mm.
- Maximum height: 38 mm.
- Base diameter: 40 mm.
- Base height: 9 mm.
- Mounting recess diameter: 10 mm.
- Mounting through-hole diameter: 6.50 mm.
- Weight: 0.09 kg (0.20 lbs).
- Corresponds to Selva OEM part number 2500065.
-
