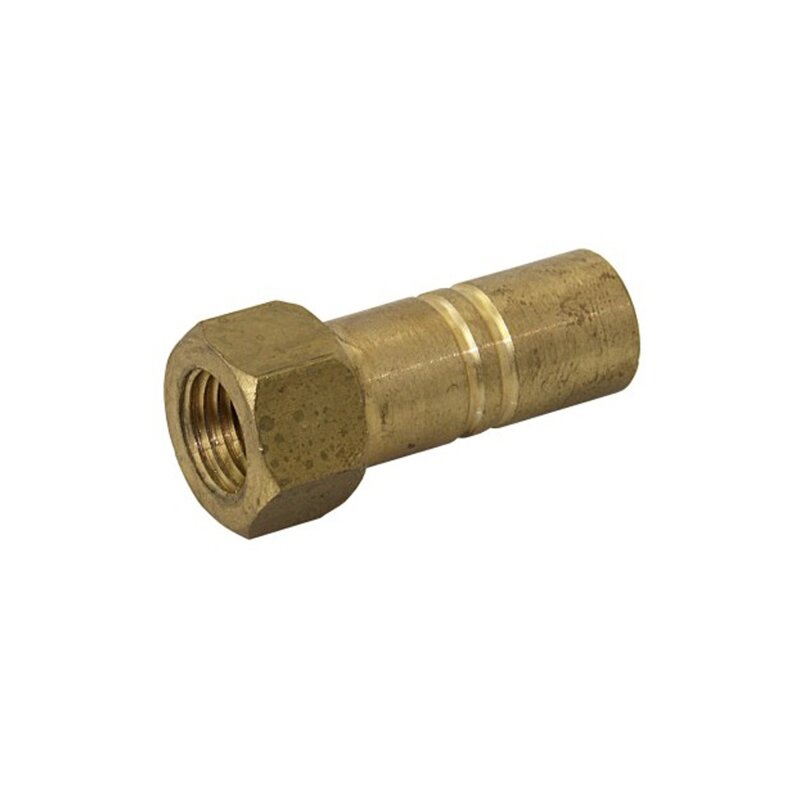

The Whale QuickConnect stem adaptor is a brass fitting for mobile plumbing systems with a 1/4-inch NPT female thread and a 15 mm connection. It is part of the WX15 fitting and pipework system and is designed for easy installation and re-use with a simple two-step, no-special-tools procedure to achieve a watertight connection.
- Description
- Ask a Question
-
Whale QuickConnect Brass Stem Adapter for WX15 Pipework
The Whale WX1537 QuickConnect stem adaptor is designed to provide a high-integrity, reliable plumbing connection for mobile applications. The WX15 fitting and pipework design supports straightforward installation and component re-use without special tools.
Technical Specifications
Brand Whale Part Number WX1537 Thread 1/4 inch NPT female Connection Size 15 mm Material Brass System WX15
Features
- WX15 design supports easy installation and component re-usability
- Simple two-step installation with no special tools required for a watertight connection
- Unique WX15 Double Gripper design for secure, long-life pipe retention even at excessive pressures
- Innovative cage collet helps eliminate leaks when fittings are installed close to tight bends
- Collet includes an internal support ring to help keep the O-ring seal in position and reduce distortion or leakage under pressure
- High-integrity single-piece moulding improves fitting strength
- Outer sleeve incorporates a collet cover to help prevent accidental pipe release
- No collet clips required, reducing installation time
- Pipework includes measured cut marks to help confirm the pipe is fully inserted
Product Details
Installation: Cut pipework to length with a straight, clean cut using Whale cutters. Push the pipework into the fitting to the second internal stop.
To release pipework: Push the grey collet back into the fitting, hold the collet in, and pull out the pipework.
-
