The Whale WX1599B thermostatic mixing valve is designed for marine water systems to automatically adjust and limit outlet water temperature. It is adjustable from 30°C to 50°C and includes a non-return valve. The unit has 3 x 1/2 inch BSP male thread connections, a maximum static pressure of 10 bar (145 PSI), hot and cold flow pressure of 0.5 to 5 bar (7.25 to 72.5 PSI), and a maximum inlet pressure differential of 2 bar (30 PSI).
- Description
- Ask a Question
-

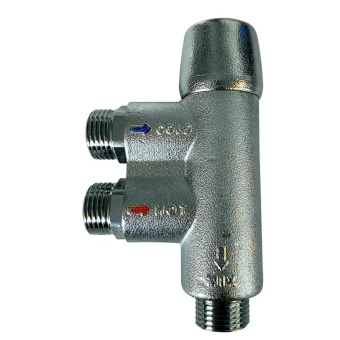

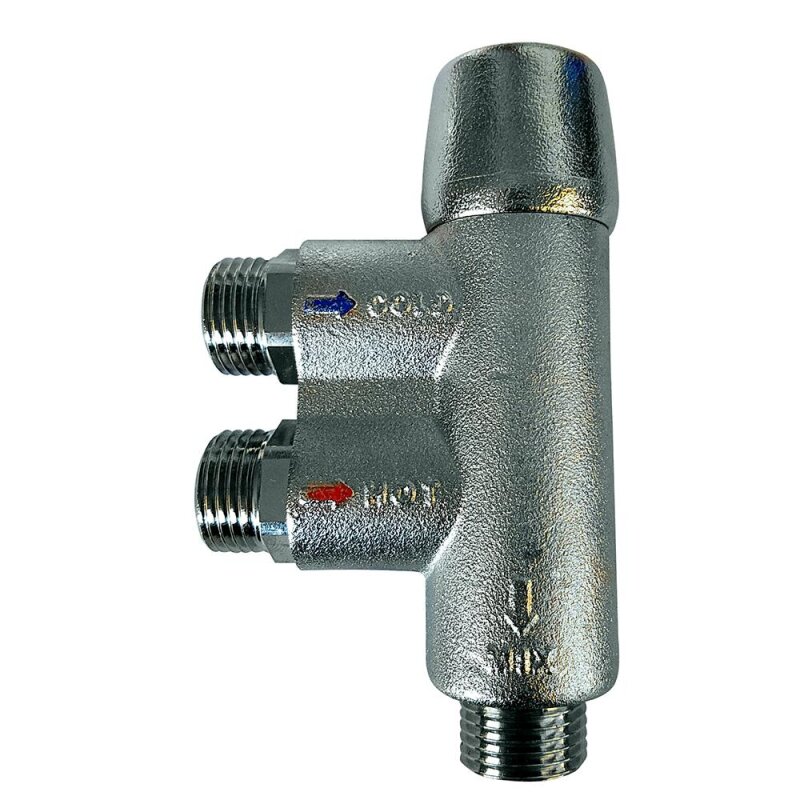

Whale Marine Thermostatic Mixing Valve With Non-Return Valve
The Whale WX1599B is a thermostatic mixing valve for marine applications, designed to automatically regulate and limit the outlet water temperature by blending hot and cold supplies. The mixing temperature is adjustable within the specified range and the assembly includes a non-return valve.
Technical Specifications
Application Marine Adjustable Outlet Temperature Range 30°C to 50°C (86°F to 122°F) Connections 3 x 1/2 inch BSP male thread Maximum Static Pressure 10 bar (145 PSI) Flow Pressure (Hot and Cold) 0.5 to 5 bar (7.25 PSI to 72.5 PSI) Hot Flow Temperature 55°C to 65°C (131°F to 149°F) Cold Supply Temperature Equal to or less than 25°C (77°F) Maximum Inlet Pressure Differential 2 bar (30 PSI) Included Component Non-return valve
Compatibility
- Alternative to Whale WX1599
Features
- Automatically adjusts and limits water outlet temperature
- Adjustable thermostat setting within the specified range
- Three 1/2 inch BSP male thread ports for hot, cold, and mixed outlet connections
-
