The Whale QuickConnect T-piece fitting (WX1586) is designed for a high-integrity plumbing system in mobile applications. It connects 1/2 inch hose x WX15 x 1/2 inch hose and uses a simple two-step, tool-free push-fit installation for a watertight connection, with a double-gripper retention design and leak-reducing cage collet construction.
- Description
- Ask a Question
-
Whale QuickConnect WX15 T-Piece Fitting
The Whale WX1586 QuickConnect T-piece is a push-fit plumbing fitting developed for mobile applications where a reliable, high-integrity system is required. The WX15 fitting and pipework design supports easy installation and re-usability without special tools, helping create a watertight connection using a simple two-step process.
Technical Specifications
Brand Whale Part Number WX1586 Fitting Type QuickConnect T-piece Connections 1/2 inch hose x WX15 x 1/2 inch hose
Features
- Designed for high-integrity, reliable plumbing in mobile applications
- WX15 system design supports easy installation and re-usability
- Simple two-step installation without special tools to make a watertight connection
- Unique WX15 Double Gripper design for secure lifelong pipework retention, even at excessive pressures
- Innovative cage collet design helps eliminate leaks where fittings are installed close to tight bends
- Collet includes an internal support ring to hold the O-ring seal in position and reduce distortion or leaks under pressure
- High-integrity single-piece molding improves fitting strength
- Outer sleeve incorporates a collet cover to help prevent accidental pipework release
- Collet clips are not necessary, reducing installation time
- Pipework includes measured cut marks to help confirm the fitting is pushed fully home
Product Details

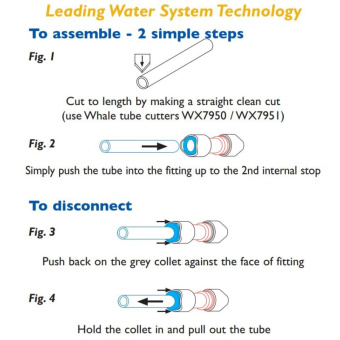

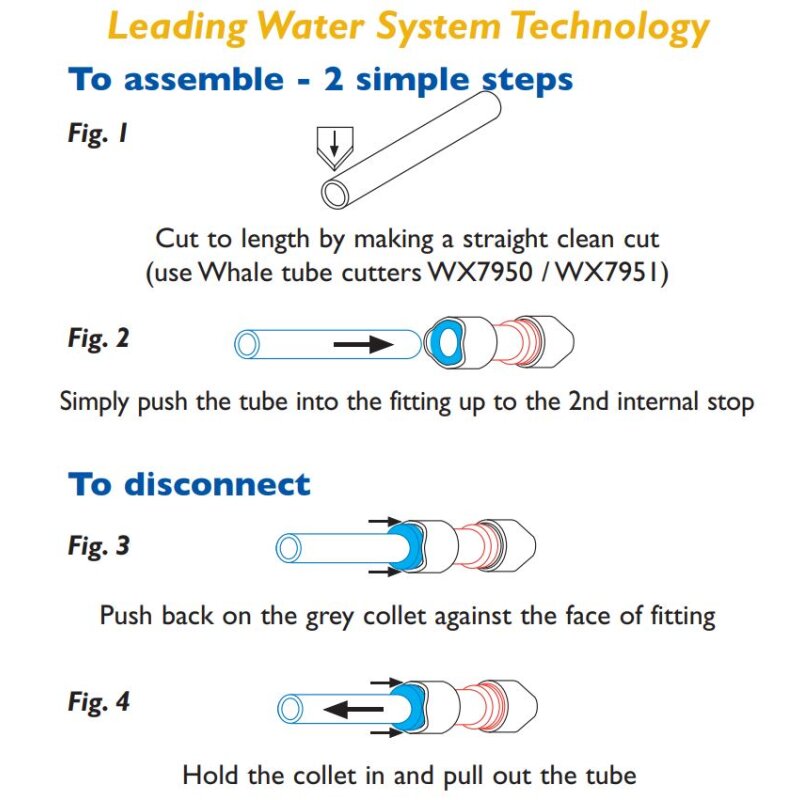

Installation: Cut pipework to length with a straight, clean cut using Whale cutters. Push the pipework into the fitting to the second internal stop.
To release pipework: Push back the grey collet into the fitting, hold the collet in, and pull out the pipework.
-
