The Whale QuickConnect stem adapter is a WX15 fitting designed to create a high-integrity plumbing connection for mobile applications and 11–15 mm pipework. It uses a two-step, tool-free installation method and is designed for easy installation and reusability, with features including the WX15 Double Gripper retention design, a cage collet to help prevent leaks near tight bends, and an outer sleeve that helps prevent accidental pipe release.
- Description
- Ask a Question
-

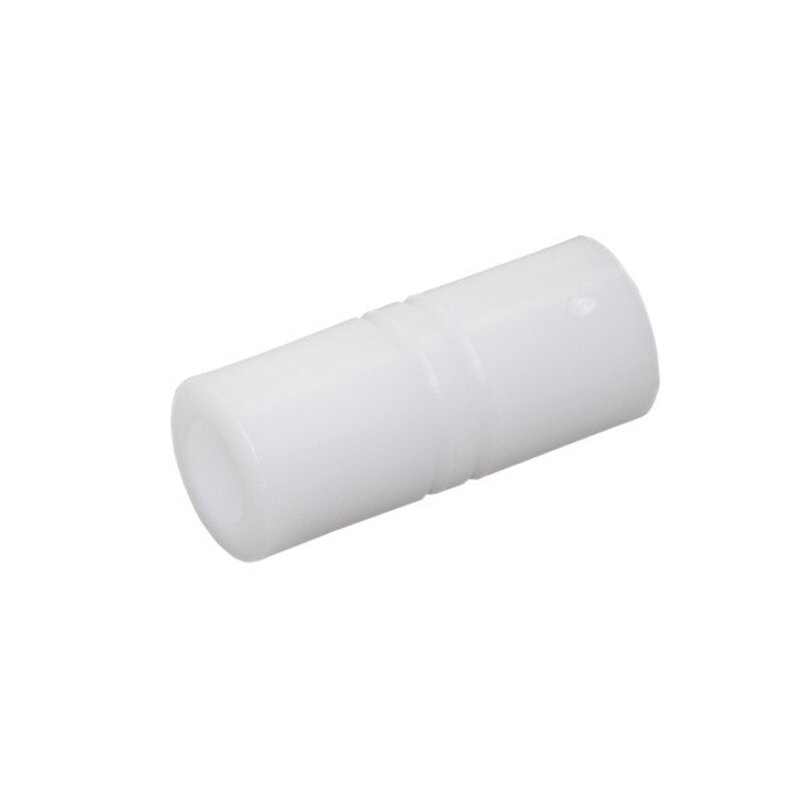

Whale WX1511 WX15 QuickConnect Stem Adapter (11–15 mm)
The Whale WX1511 is a QuickConnect stem adapter for the WX15 fitting system, designed to provide a high-integrity, reliable plumbing connection for mobile applications. It is intended to support simple installation and re-use of components without special tools.
Technical Specifications
Brand Whale Part Number WX1511 Fitting System WX15 Size Range 11–15 mm
Features
- Two-step installation procedure that does not require special tools to make a watertight connection
- WX15 Double Gripper design for secure pipework retention, even at excessive pressures
- Cage collet design to help eliminate leaks where fittings are installed close to tight bends
- Collet internal support ring helps keep the O-ring seal in position to reduce distortion and leakage under pressure
- High-integrity single-piece molding improves fitting strength
- Outer sleeve incorporates a collet cover to help prevent accidental pipework release
- Collet clips are not necessary, helping reduce installation time
- Pipework includes measured cut marks as a visual guide to ensure fittings are pushed fully home
Product Details
Installation: Cut pipework to length with a straight, clean cut using Whale cutters, then push the pipework into the fitting to the second internal stop.
To release pipework: Push back the grey collet into the fitting, hold the collet in, and pull out the pipework length.
-
