ID
1172908
$ 57.48
1-2 weeks delivery time
-
+
The Whale SuperSub 500 submersible bilge pump is a slim, low-profile 12V DC unit for tight bilge spaces and installation under engines. It delivers up to 32 L/min (1892 LPH / 500 US GPH), uses a 19 mm (3/4 inch) hose connection, and is intended to run with a separate bilge switch (not included). The pump draws up to 2.4A (5A fuse) and is listed with dimensions including 54 mm height, 183 mm width, and 75 mm depth, with a 3-year warranty and marine-standard certifications.
- Description
- Ask a Question
-

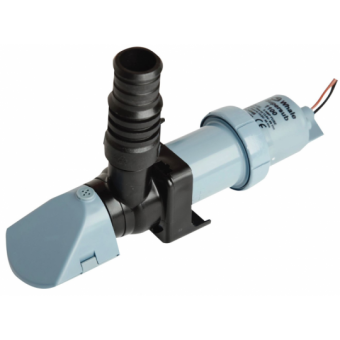

Whale SuperSub 500 Low-Profile Bilge Pump
The Whale SS5012 is a compact electric submersible bilge pump designed for boats with very limited bilge height. Its slim body supports flexible mounting (vertical or horizontal) and is intended to be controlled by a separate panel or float switch for dependable bilge water removal.
Features
- Narrow, low-profile design for small bilges or installation under engines
- Suitable for vertical or horizontal installation
- Easy to install and clean; helps keep the bilge nearly dry
- Ports can be set in two different positions; pump body is 180° rotatable
- Integrated venting to help prevent air in the system
- Standard configuration for use with a separate bilge switch (not included)
Technical Specifications
Brand Whale Model SS5012 Model Series SuperSub 500 Voltage 12V DC Max Flow Rate 1892 LPH (500 US GPH) / 31.6 LPM (8 US GPM) Flow Rate at 1 m Head 1514 LPH (400 US GPH) / 25 LPM (6 US GPM) Flow Rate at 2 m Head 925 LPH (244 US GPH) / 15.4 LPM (4 US GPM) Capacity (Listed) 32 L/min Current 2.4A Fuse 5A Hose Size 19 mm / 3/4 inch Automatic Pump No Dimensions (Listed) Height 54 mm, Width 183 mm, Depth 75 mm Dimensions (L x W x H) 186 x 54 x 75 mm Suitable Application Leisure craft up to 24 metres (78.8 ft) as sole or primary bilge pump Certifications and Approvals ISO 8849; ISO 15083; Ignition Protected per ABYC & USCG; CE Certified (89/336/EEC EMC compliant) Conforms To (Listed) ISO 8846; ISO 8849; ISO 10133; ISO 15083 Warranty 3 Years Country of Origin United Kingdom Article Number 17540406 Item Number 17540406 Replaces 504225 Whale Number 72013 Forniture Nautiche Italiane Number 1603003 EAN 766478951014 Product Portfolio Submersible bilge pumps Shipping Weight 0.26 kg
Product Details
- Designed for tight spaces with limited height
- Intended to be switched by a separate control panel or float switch
-
