The Supersub Smart automatic submersible bilge pump is a 12V DC unit designed for efficient water removal in fresh and saltwater environments, operating automatically without a separate float switch via an integrated electric field sensor. It delivers up to 66 L/min (3960 LPH / 1050 US GPH) and is listed at 47 L/min (2820 LPH / 750 US GPH) at 1 m head, with a built-in non-return valve, low-profile design, and rotatable strainer/outlet for flexible installation. Supplied cable length is listed as 1 m, and hose outlet options include 25 mm (1 inch) or 28 mm (1-1/8 inch).
- Description
- Ask a Question
-
Supersub Smart Automatic Submersible Bilge Pump (12V DC)
The Whale Supersub Smart is an automatic submersible bilge pump for fresh and saltwater use. It uses integrated electric field sensor technology to start and stop pumping without a separate float switch, and includes a non-return valve to help prevent backflow in the discharge line.
Features
- Automatic operation via integrated electric field sensor (no separate float switch required)
- Low-profile design for tight bilge spaces
- Built-in non-return valve to help prevent backflow
- Rotatable strainer and outlet (also listed as a 180° rotatable pump body) for flexible installation
- Integrated venting to help prevent air in the system
- Solid state switch with no moving parts (listed as reducing power consumption)
Technical Specifications

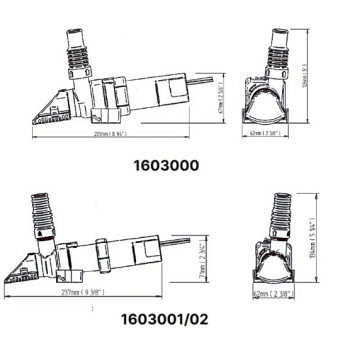

Brand Whale Product Type Automatic Submersible Bilge Pump Voltage 12V DC Max Flow Rate (No Back Pressure) 3960 LPH (1050 US GPH) / 66 LPM (17.5 US GPM) Flow Rate at 1 m Head 2820 LPH (750 US GPH) / 47 LPM (12.5 US GPM) Maximum Pump Head 2.3 to 4.27 metres Maximum Recommended Head 3 metres (9.8 feet) Current Draw 4.3A (also listed as max 5A) Fuse 7A (also listed as 5A) Cable Length 1 metre (3.2 feet) Hose Size 25 mm (1 inch) / 28 mm (1-1/8 inch) Dimensions (Listed) Width 240 mm; Height 54 mm; Depth 75 mm Dimensions (L x W x H, Listed) 214 x 54 x 133 mm Shipping Weight 0.58 kg Country of Origin United Kingdom Approvals ISO 8849 (bilge pump) standards; ISO 15083 (bilge pumping systems) standards; ignition protected per ABYC & USCG standards; CE Certified 89/336/EEC EMC compliant Additional Conformance (Listed) ISO 8846; ISO 8849; ISO 10133; ISO 15083 Warranty 1 year (also listed as 3 years) Whale Reference 72011 Article Number 17540402 FNI Product Number 1603001 EAN 766478945099
Compatibility
- Model SS1212
- Model SS1212B
Product Details
- Suitable for leisure craft up to 24 metres (78.8 ft) when used as the sole or primary bilge pump
- Designed to keep the bilge nearly dry
-
