ID
1172907
$ 211.44
1-2 weeks delivery time
-
+
The Whale SS1224 SuperSub Smart automatic submersible bilge pump is a 24V DC unit designed to start and stop automatically using electric field sensor technology, eliminating the need for a separate float switch. It includes a built-in non-return valve, integrated solid state switching with no moving parts, and is suitable for fresh and saltwater use in leisure craft bilges. Stated performance includes 3960 L/h (66 L/min) and 2820 L/h (47 L/min) at 1 m head, with hose connection options of 25 mm (1 inch) or 28 mm (1-1/8 inch), and current draw listed as up to 2.2 A.
- Description
- Ask a Question
-

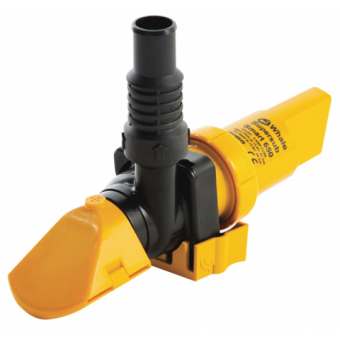

Whale SuperSub Smart Automatic Submersible Bilge Pump (SS1224)
The Whale SS1224 is an automatic submersible bilge pump designed to manage bilge water without a separate float switch. Once powered, its electric field sensor technology controls automatic start/stop operation, and the pump includes a non-return valve for effective discharge control in typical marine bilge installations.
Features
- Automatic operation via integrated electric field sensor technology (no separate float switch required)
- Integrated solid state switch with no moving parts (listed as minimizing power consumption)
- Built-in non-return valve
- Low-profile, compact design for confined spaces
- Adjustable strainer and outlet to fit bilge area
- 180° rotatable pump body (listed for flexible installation)
- Compatible with freshwater and saltwater applications
- Listed as easy to install and clean, and leaves the bilge nearly dry
- Integrated venting is listed to help prevent air in the system
Technical Specifications

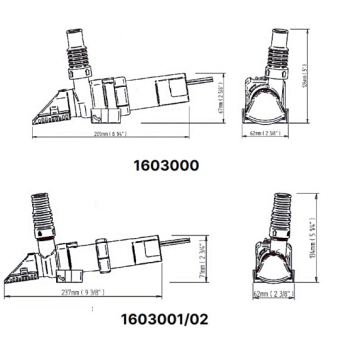

Brand Whale Manufacturer Number SS1224 Voltage 24V DC Automatic Bilge Pump Yes Flow Rate (Listed) 3960 L/h (1050 US GPH) / 66 L/min (17.5 US GPM) Flow at 1 m Head (Listed) 2820 L/h (750 US GPH) / 47 L/min (12.5 US GPM) Flow Rate (Also Listed) 68 L/min Capacity (Also Listed) 47 L/min Maximum Pump Head (Listed) 2.3 to 4.27 metres Maximum Recommended Head (Listed) 3 metres (9.8 ft) Current Draw (Listed) 2.2 A (max) Fuse Rating (Listed) 5 A Fuse (Also Listed) 2.5 A Hose Size 25 mm (1 inch) or 28 mm (1-1/8 inch) Inlet/Outlet (Listed) 25 mm or 28 mm (1 inch or 1-1/8 inch) Cable Length (Listed) 1 metre (3.2 feet) Dimensions (Listed) Width 54 mm / Height 75 mm / Length 240 mm Dimensions (Also Listed) Height 54 mm / Depth 75 mm / Width 240 mm Dimensions (L x W x H) (Also Listed) 214 x 54 x 133 mm Shipping Weight (Listed) 0.58 kg Country of Origin (Listed) United Kingdom Recommended Vessel Length (Listed) Up to 24 metres (78.8 ft) when used as sole or primary pump Approvals (Listed) ISO 8849; ISO 15083; ignition protected per ABYC & USCG; CE Certified 89/336/EEC EMC compliant Conformity (Also Listed) ISO 8846, ISO 8849, ISO 10133 and ISO 15083 Warranty (Listed) 1 year Warranty (Also Listed) 3 years Whale Reference (Listed) 72012 FNI Product Number (Listed) 1603002 Article Number (Listed) 17540404 EAN 766478945112 Product Portfolio (Listed) Submersible bilge pumps
Compatibility
- SS1224
- SS1224B
Product Details
- Listed for leisure craft bilges and tight bilge conditions, including installations under inboard or I/O engines
- Long installation wires are listed for versatile installation
- Non-return valve is included
- Italian Nautical Supplies reference (listed): 1603002
-
