ID
1172905
$ 103.16
1-2 weeks delivery time
-
+
The Whale SS5212 automatic submersible bilge pump is a 12V DC water-removal unit for fresh or salt water with up to 2460 LPH (41 LPM / 650 US GPH) output. It uses Electric Field Sensor Technology / an integrated solid state switch for automatic start/stop without a separate float switch, and includes a built-in non-return valve. The pump supports a 19 mm (3/4 inch) hose connection (also listed with an optional 25 mm (1 inch) connection), has a 1 m cable, 5A fuse requirement, and typical current draw of 3A at 12V (3.4A at 13.6V).
- Description
- Ask a Question
-

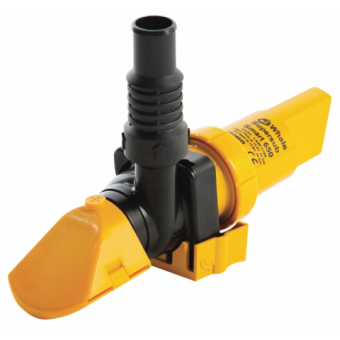

SuperSub Smart Automatic Submersible Bilge Pump (12V DC)
The Whale SS5212 is a fully automatic submersible bilge pump designed for efficient bilge water removal in both fresh water and salt water. It uses an integrated electric field sensor / solid state switch to start and stop automatically when powered, eliminating the need for a separate float switch. A built-in non-return valve and a rotatable strainer/outlet help simplify installation in tight bilge spaces.
Technical Specifications

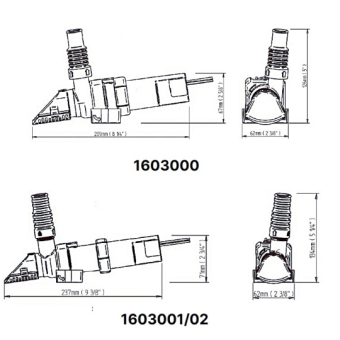

Brand Whale Manufacturer Part Number SS5212 WHALE Reference 72014 FNI Product Number 1603000 EAN 766478943255 Item / Article Number 17540407 Voltage 12V DC (output based on 13.6V design voltage) Flow Rate (Max) 2460 LPH (650 US GPH) / 41 LPM (10 US GPM) Flow Rate at 1 m Head 2081 LPH (550 US GPH) / 34 LPM (9 US GPM) Flow Rate at 2 m Head 1440 LPH (360 US GPH) / 24 LPM (6 US GPM) Current 3A at 12V; 3.4A at 13.6V Fuse 5A Cable Length 1 m (3.2 ft) Hose Size / Inlet-Outlet 19 mm / 3/4 inch (also listed: choice of 19 mm (3/4 inch) or 25 mm (1 inch), straight) Maximum Pump Head 2.3 to 4.27 m Maximum Recommended Head 3 m (9.8 ft) Dimensions Height 54 mm (2-1/8 inch), Width 212 mm (8-3/8 inch), Depth 75 mm (2-15/16 inch) (also listed: 186 x 54 x 126 mm; also listed: Width 54 mm / Height 75 mm / Length 212 mm) Shipping Weight 0.60 kg Country of Origin United Kingdom Suitable Vessel Size Leisure craft up to 24 m (78.8 ft) as sole or primary bilge pump Certifications / Approvals ISO 8849; ISO 15083; Ignition Protected per ABYC & USCG; CE Certified (89/336/EEC EMC compliant) (also listed: ISO 8846; ISO 10133) Product Portfolio Submersible bilge pumps
Features
- Automatic operation via integrated electric field sensor / solid state switch
- No separate float switch required
- Built-in non-return valve
- Strainer and outlet can rotate to fit different bilge areas (also listed: 180° rotatable pump body)
- Quick installation with long wires
- Suitable for fresh water and salt water use
- Integrated venting to help prevent air in the system (as stated in provided information)
Product Details
This pump is described as automatically starting and stopping when powered, helping provide convenient, energy-efficient bilge water removal. It is also stated as not being affected by wave action because the sensor compensates for it and keeps the pump running constantly.
-
