ID
1262137
$ 376.13
1-2 weeks delivery time
-
+
The Rule RM1500A fully automatic submersible bilge pump operates on 12V DC and delivers up to 5678 L/h (up to 95 L/min / 1500 GPH). It uses an integrated electronic water-sensing device with a fail-safe backup mode, includes a non-return (backflow prevention) valve, ventilated housing with thermal protection, and a removable/quick-release inlet strainer. Connections are listed as 25 mm / 28 mm hose and 1 inch NPT with 25 mm (1 inch) or 29 mm (1-1/8 inch) hose options, and dimensions are given as 150 x 110 x 150 mm.
- Description
- Ask a Question
-

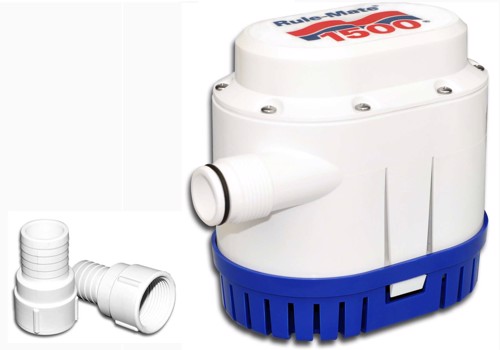

Rule RM1500A Automatic Rule-Mate 1500 Bilge Pump
The Rule RM1500A is a fully automatic submersible bilge pump for 12V DC systems. It combines a bilge pump and an intelligent electronic water-sensing control in one housing, automatically turning on when water rises and helping protect the pump and battery through programmed dry-run checking and backup operation.
Features
- Integrated electronic water sensor with level sense technology and a fail-safe backup mode
- Ventilated housing to help prevent air locking
- Built-in thermal protection
- Non-return (backflow prevention) valve to reduce water flowing back into the bilge
- Removable / quick-release inlet strainer for easier maintenance
- Quiet operation with a silicone-coated power cable
- Spark-free / ignition-protected design (as specified)
- Strong snap-lock attachment for firm installation
- Automatic logic can stop and re-check for water every 2 1/2 minutes if the pump is running but not pumping (as described)
Technical Specifications
Model RM1500A Order Number 00304577 Supplier Code RM1500A Barcode 042237114198 Voltage 12 Volts / 12V DC Output (Max) 5678 L/h (1500 GPH) at zero discharge head; up to 95 L/min (21 GPM) Output at 2 m Head 2574 L/h (680 GPH) Max Recommended Discharge Head 2 m (6.5 ft) Activation Level Triggers at 6 cm (also described as approx. 7 cm / 2-3/4 inch) Shut-Off Residual Water Level Approx. 1.6 cm (5/8 inch) Hose Connection 25 mm / 28 mm; also listed as 25 mm (1 inch) or 29 mm (1-1/8 inch) ID hose Thread 1 inch NPT (also listed as “Thread: 1”) Current / Power Power consumption listed as 4.8 Ah; power consumption listed as 4.2 A (max); amperage listed as max 7 A Fuse Size 9 A (recommended) and 10 A (listed) Dimensions 150 x 110 x 150 mm (HxWxD); also listed as 150 mm (L) x 150 mm (H) x 110 mm (W); also listed as 10.8 cm (W) x 16.0 cm (L) x 15.2 cm (H) Weight Approx. 1.89 kg (approx. 2.39 kg packed); shipping weight listed as 2.60 kg Packaged Dimensions 20.00 x 17.00 x 12.00 cm Material Tough plastic body Motor Life Approx. 5000 hours Operating Temperature Range -10°C to 60°C (14°F to 140°F) Mounting Type Vertical or Horizontal Certifications CE, ISO 9001 compliant Product Portfolio Submersible bilge pumps
Product Details
- Designed to work automatically alongside a 3-position switch panel (as described).
- Threaded hose tail is described for straightforward installation and upkeep.
- Air vents are described to help reduce air locks and reduce water left in the bilge.
-
