ID
1262139
$ 449.78
1-2 weeks delivery time
-
+
The Rule RM2000A-24 fully automatic submersible bilge pump is a 24V DC unit rated up to 7574 liters per hour (2000 GPH) at zero head, with an integrated electronic water sensor and float switch activation at 6 cm water depth. It includes a backup function, sensor-contamination shutdown with computer-controlled restart after 2.5 minutes, ventilated housing to help avoid air locking, and built-in thermal protection. The pump has a removable strainer, non-return valve, threaded hose tail, snap-lock attachment, and supports 25 mm / 28 mm hose connections with a 1-inch thread; dimensions are 150 x 110 x 150 mm.
- Description
- Ask a Question
-

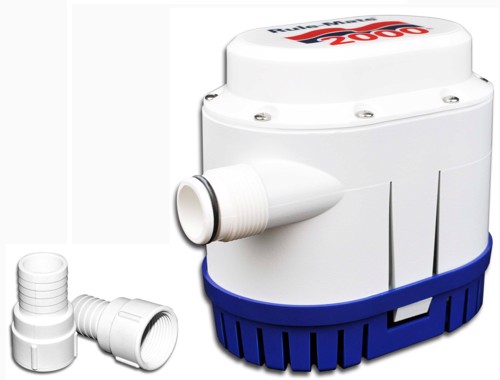

Rule-Mate 2000 Automatic Submersible Bilge Pump (24V)
The Rule RM2000A-24 is a fully automatic 24V bilge pump with an integrated electronic water-sensing device and backup operation. It is designed for reliable bilge water removal with automatic shutdown and restart logic to help protect the pump if the sensor becomes contaminated or if flow is restricted.
Features
- Float switch activation at 6 cm water depth
- Backup system for dependable operation
- Sensor contamination triggers automatic shutdown with computer-controlled restart after 2.5 minutes
- Computer detects flow blockages and switches to controlled operation
- Ventilated housing design to help avoid air locking
- Built-in thermal protection
- Secure snap-lock attachment
- Quiet functioning
- Silicone-coated power cable
- Spark-free construction
- Removable strainer for maintenance
- Non-return valve to prevent water backflow into the bilge
- Threaded hose tail for installation and servicing
- Consumes only 4 Ah of power
Technical Specifications
Model RM2000A-24 Voltage 24 Volts (24V DC) Output (Yield) 7574 liters per hour Capacity at Zero Head 7,570 L/h (2000 GPH) Capacity at 2 m Head 4,921 L/h (1300 GPH) Maximum Output 120 liters per minute (27 gallons per minute) Maximum Discharge Head 3 m Float Switch Activation Depth 6 cm Sensor Restart Interval (After Shutdown) 2.5 minutes Residual Water Level (After Shutoff) Approx. 1.6 cm (5/8 inch) Activation Level (Sensor Description) Approx. 7 cm (2-3/4 inch) Hose Connection Diameter 25 mm / 28 mm Connection 1 inch NPT; for 25 mm (1 inch) or 29 mm (1-1/8 inch) ID hose Thread 1 inch Amperage Max 6 A Fuse Size 7.5 A Dimensions (H x W x D) 150 x 110 x 150 mm Dimensions 10.8 cm (W) x 16.0 cm (L) x 15.2 cm (H) Shipping Weight 2.70 kg Weight 1.94 kg (approx. 2.44 kg packed) Packaged Dimensions 20.00 cm (L) x 17.00 cm (H) x 12.00 cm (W) Order Number 00304579 Supplier Code RM2000A-24 Barcode 042237114303 Material Tough, corrosion-resistant plastic body Noise Level 50–55 dB (at 1 meter distance) Temperature Rating -10°C to 60°C Ignition Protection Ignition protected Certifications CE and ISO compliant
Product Details
This pump incorporates a built-in sensor and is described as working with a 3-position switch panel. Programming logic monitors for running without pumping; if debris fouls the sensor or the pump becomes air-bound, the unit stops and checks for water at the stated interval, then returns to normal automatic operation once cleared.
-
