ID
1262138
$ 434.15
1-2 weeks delivery time
-
+
The Rule RM2000A automatic submersible bilge pump operates on 12V and delivers approximately 7574 liters per hour (2000 GPH) at zero head, with 4921 liters per hour (1300 GPH) at 2 m head. It uses an integrated electronic water-sensing switch and activates at about 6 cm water level (also stated as about 7 cm / 2-3/4 inch), then shuts off at about 1.6 cm (5/8 inch). The pump includes a backup function, sensor contamination shutdown with computer-controlled restart after 2.5 minutes, flow blockage monitoring, ventilated housing, thermal protection, removable strainer, non-return valve, and a threaded hose tail; max current is 12A with a 15A fuse.
- Description
- Ask a Question
-

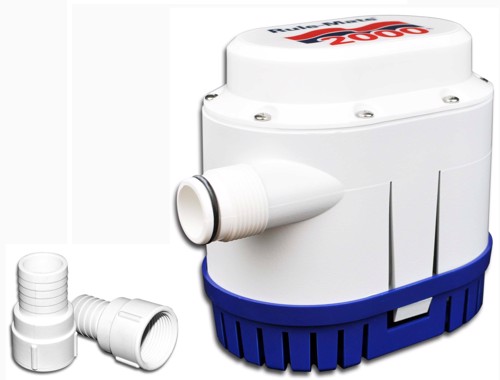

Rule RM2000A Submersible Automatic Bilge Pump
The Rule RM2000A is a fully automatic bilge pump that combines a high-capacity pump and an integrated electronic water-sensing control in one housing. It is designed to start and stop automatically based on water level and to protect the pump and vessel electrical system by monitoring for sensor contamination, air locking, and flow blockage.
Technical Specifications
Model RM2000A Order Number 00304578 Supplier Code RM2000A Barcode 042237114297 Product Portfolio Submersible Bilge Pumps Voltage 12 Volts Capacity at Zero Head 7,570 L/h (2000 GPH) Capacity at 2 m Head 4,921 L/h (1300 GPH) Yield 7574 Liters per Hour Activation Water Level 6 cm (also stated as approx. 7 cm / 2-3/4 inch) Shutoff Water Level Approx. 1.6 cm (5/8 inch) Hose Connection Diameter 25 mm / 28 mm Hose Connection Options 25 mm (1 inch) or 29 mm (1-1/8 inch) ID hose Thread 1 inch Thread Type 1 inch NPT Max Current 12A Recommended Fuse 15A Low Power Consumption 8.4 Ah Dimensions (H x W x D) 150 x 110 x 150 mm Additional Dimensions 10.8 cm (W) x 16.0 cm (L) x 15.2 cm (H); approx. 23 cm from cable to end of port Shipping Weight 2.70 kg Manual Multilingual
Features
- Fully automatic operation with integrated electronic water-sensing switch
- Activates at 6 cm water level via float switch
- Backup function for operating reliability
- Sensor contamination protection with automatic shutdown and computer-controlled restart after 2.5 minutes
- Computer monitors flow blockage and switches to controlled operation accordingly
- Ventilated housing to prevent air locking
- Built-in thermal protection
- Strong snap-lock attachment
- Quiet operation
- Silicone-coated power cable
- Spark-free design
- Removable strainer for quick cleaning
- Non-return valve to prevent backflow into the bilge
- Threaded hose tail for simplified installation and maintenance
Product Details
The pump is programmed to detect when it is running but not pumping water. If debris fouls the sensor or the pump becomes air-bound, it stops and then checks for water every 2 1/2 minutes. Once cleared, it returns to normal operation.
-
