The Rule RM1100B-24 fully automatic submersible bilge pump is a 24V DC unit rated at 4164 liters per hour and uses an integrated electronic water-sensing device for automatic operation. It activates via float switch at a 6 cm water level and includes a backup function that checks for water every 2.5 minutes if the sensor is obstructed or the pump becomes air-bound. The pump features a ventilated housing, built-in thermal protection, low power consumption, a removable inlet strainer, a supplied non-return valve, and hose connections for 25 mm and 28 mm hose sizes, with a 25 mm (1 inch) NPSM thread noted.
- Description
- Ask a Question
-

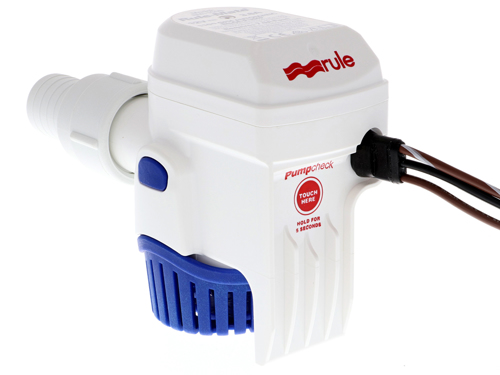

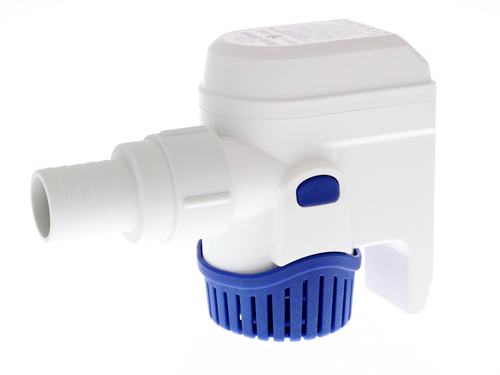

Rule-Mate RM1100B-24 Automatic Submersible Bilge Pump
The Rule RM1100B-24 is a fully automatic bilge pump for marine bilge water removal. It uses an integrated sensor for hands-free operation and includes a backup mode designed to protect the pump and conserve power if the sensor is fouled or the pump is not moving water.
Features
- Integrated electronic water sensor for automatic operation
- Float switch activation at a 6 cm water level
- Backup functionality: checks for water every 2.5 minutes if the sensor is obstructed or the pump becomes air-bound
- Ventilated housing to help prevent air locking
- Built-in thermal protection
- Snap-lock attachment for secure mounting
- Quiet operation with a silicone-coated power cable
- Spark-free design with a removable strainer for cleaning
- Non-return valve included to reduce backflow (noted as compatible only with straight hose nozzles)
- Threaded hose nozzles to simplify installation and maintenance
Technical Specifications
Brand Rule Model RM1100B-24 Voltage 24 Volts (24V DC stated) Capacity (Yield) 4164 liters per hour Capacity at Zero Discharge Head 4270 l/h (1128 GPH) Capacity at 2 m Head 1726 l/h (456 GPH) Max Flow (Also Listed) 69 liters per minute (15 gallons per minute) Maximum Discharge Head 2 meters Activation Water Level 6 cm On/Off Water Levels (Also Listed) On at approximately 2-1/2 inches; off at 5/8 inch Hose Connection 25 mm / 28 mm Connections (Also Listed) For 25 mm (1 inch) or 28 mm (1-1/8 inch) inside-diameter hose; straight outlet also referenced Thread 1 (as listed); 25 mm (1 inch) NPSM thread also listed Power Consumption 2 Ah Amperage (Max) 2.3 A Fuse Size 4 A Dimensions (H x W x D) 112 x 74 x 163 mm Dimensions (Also Listed) 112 mm high x 130 mm long x 73 mm wide Dimensions (Also Listed) 88 mm width x 73 mm depth x 112 mm height Material Durable plastic construction Ignition Protected Yes Ingress Protection IP68 (suitable for continuous submersion) Operating Temperature Range -10°C to +40°C (14°F to 104°F) Motor Life 2,500 hours Mounting Horizontal or vertical mounting options Package Dimensions 18.00 x 8.00 x 20.00 cm Weight 0.48 kg (approx. 0.68 kg packed) Shipping Weight 0.80 kg Certifications ISO 9001, CE, RoHS compliant Order Number 00304576 Supplier Code RM1100B-24 Barcode 042237106247 Product Portfolio Submersible bilge pumps
Compatibility
- Alternate to RuleMate RM1100-24
- Alternate to RuleMate RM1100A-24
Product Details
The pump is described as operating seamlessly with a 3-position switch panel. Built-in programming can sense when the pump is running but not pumping water and then stop and periodically re-check for water every 2.5 minutes, reverting to normal automatic operation once conditions return to normal.
-
