The Rule 27DA-24 submersible bilge pump is a 24V DC unit rated at 4164 LPH (1100 GPH) at open flow, delivering 3255 LPH at 1 metre head and 2081 LPH at 2 metres head, with a maximum head up to 2.2 metres. It includes a built-in thermal cut-off, check valve, hidden air vents to reduce air-locking, threaded discharge, and a quick-release strainer in durable plastic housing. Hose connections are 25 mm (1 inch) and 28 mm (1-1/8 inch); dimensions are 112 x 74 x 64 mm, with 1.9A at 24V (2.4A at 27.2V) and a 3A fuse rating, CE certified and approved to ISO8846 and ISO8849, backed by a 3-year warranty and listed as replacing Rule 28D.
- Description
- Ask a Question
-

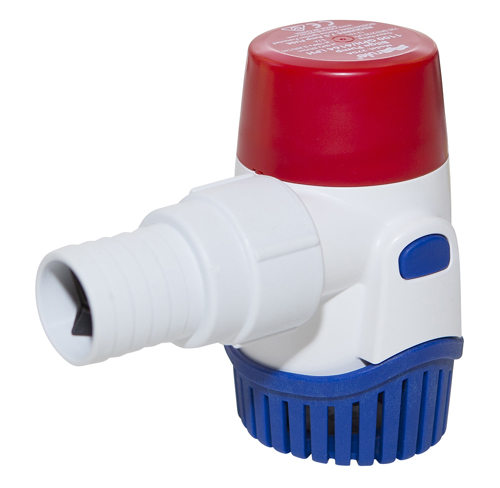

Rule 27DA-24 24V Submersible Standard Bilge Pump
The Rule 27DA-24 is a compact, marine-grade bilge pump designed for dependable dewatering in demanding onboard environments. It combines optimized impeller performance with integrated safety and maintenance-focused features, and is intended to be operated using a separate panel switch or a float switch.
Technical Specifications
Model 27DA-24 Voltage 24V DC Flow Rate (Open Flow) 4164 LPH / 1100 GPH Flow Rate at 1 Metre Head 3255 LPH / 860 GPH Flow Rate at 2 Metre Head 2081 LPH / 550 GPH Maximum Pump Head Up to 2.2 metres Amperage 1.9A at 24V; 2.4A at 27.2V Fuse Rating 3A Hose Connection 25 mm (1 inch), 28 mm (1-1/8 inch) Dimensions (H x W x D) 112 x 74 x 64 mm Construction Durable plastic Approvals ISO8846 (ignition), ISO8849 (bilge pump), CE Certified Warranty 3 years Order Number 00304478 Supplier Code 27DA-24 Barcode 042237104762 Shipping Weight 0.80 kg Product Portfolio Submersible bilge pumps
Features
- Built-in thermal cut-off (TCO) for safety
- Check valve included for backflow prevention
- Hidden air vents to reduce air-locking
- Threaded discharge to simplify installation
- Quick-release strainer for easier maintenance
- Rugged, marine-grade housing
Compatibility
- Replaces model: Rule 28D
Product Details
- Additional listed performance figures: 4,224 L/h (1116 GPH) at zero discharge head; 3,123 L/h (825 GPH) at 2 m head
- Additional listed electrical figures: amperage max 2.2A (27V); fuse size 4A
- Additional listed discharge/connection details: 25 mm (1 inch) and 29 mm (1-1/8 inch) ID hose or NPSM
-
