ID
1259066
$ 87.83
1-2 weeks delivery time
-
+
The Rule 27DA submersible bilge pump is a 12V unit rated at 4164 LPH (69 LPM / 18 GPM) for marine water removal. It features a durable plastic body, built-in thermal cut-off protection, a check valve, and hidden air vents to help prevent air-locking. The pump includes a threaded discharge, a quick-release strainer for cleaning, hose connections for 25 mm (1 inch) and 28 mm (1-1/8 inch), and a base compatible with Rule 27D screw holes; approvals listed are ISO8846 and ISO8849.
- Description
- Ask a Question
-

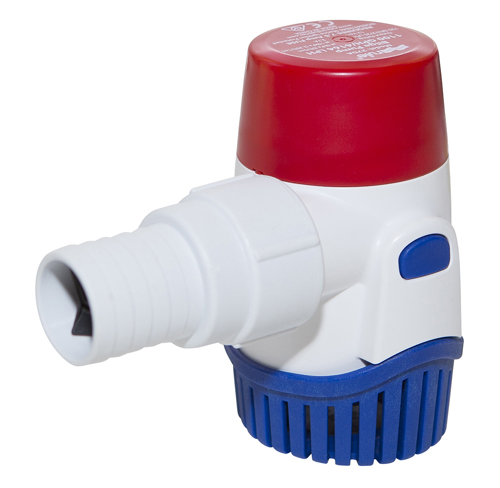

Rule 27DA 1100 Submersible Bilge Pump 12V
The Rule 27DA is a compact submersible bilge pump designed for water removal in marine and mobile installations. It combines a quick-clean strainer and threaded discharge with protective features such as thermal cut-off and air venting to support reliable operation.
Technical Specifications
Model 27DA Voltage 12V DC Flow Rate 4164 LPH / 69 LPM / 18 GPM Capacity (Zero Head) 4224 L/h (1116 GPH) Capacity (At 2 m Head) 3123 L/h (825 GPH) Maximum Discharge Head 2 m Power Consumption 3.7 Ah (as stated) Current Draw 3.7 A Max Amperage 4.7 A (at 13.6 V) Fuse Size 6 A; also listed as 7.5 A Maximum Power Consumption 44.4 W (at 3.7 A) Dimensions (H x W x D) 112 x 74 x 64 mm Dimensions (Alternate Listing) 111 mm (H) x 64 mm (W) x 74 mm (L) Weight 0.41 kg (approx.); 0.61 kg when packed (approx.) Shipping Weight 0.80 kg Body Material Plastic (marine-grade / tough plastic, as stated) Hose Connection 25 mm (1 inch) + 28 mm (1-1/8 inch) Connection (Alternate Listing) 25 mm (1 inch) and 29 mm (1-1/8 inch) ID hose or NPSM Approvals ISO8846 (ignition), ISO8849 (bilge pump) Temperature Range 0 C to 60 C (32 F to 140 F) Motor Life Rated for 1500 hours (as stated) Self-Priming Capability Up to 1 m (3.3 ft), as stated Order Number 00304477 Supplier Code 27DA Barcode 042237104724
Features
- Built-in thermal cut-off for pump and vessel protection
- Check valve to reduce water retention and help prevent backflow
- Hidden air vents to help prevent air-locking
- Threaded discharge for easier installation
- Quick-release strainer for fast cleaning
Compatibility
- Base compatible with Rule 27D screw holes
- Alternate to Rule 27D
- For automatic operation, can be used with Rule Float Switches
Product Details
- Operated using a separate panel switch or a float switch to sense water and activate the pump
- Designed for marine bilge pump applications (ISO-certified approvals listed)
-
