ID
1317059
$ 456.36
1-2 weeks delivery time
-
+
The Jung OD6601G-06 Simer 6 Puddle Pump is built to pump water down to 2 mm residual levels and starts pumping from 5 mm, making it perfect for draining flat roofs, terraces, and basements. It has a vortex impeller and oil-filled motor with built-in thermal protection, suitable for clean and slightly contaminated water up to 50°C. The pump operates at 230V, has a maximum discharge head of 6.5 meters, and a free flow rate of 6000 liters per hour.
- Description
- Ask a Question
-

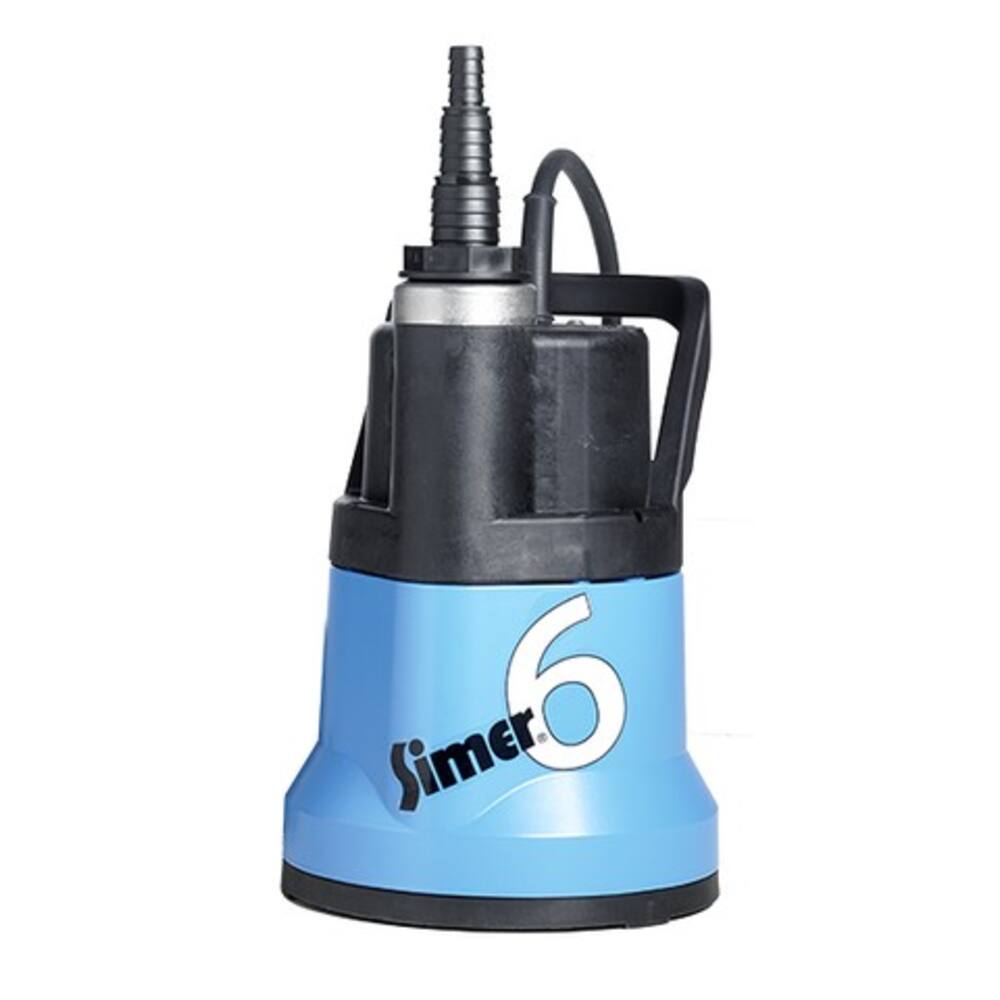

Jung OD6601G-06 - Simer 6 Puddle Pump Classic 230V
The Simer 6 submersible pump is built to pump water to the very last drop, making it perfect for draining flat roofs, terraces, tennis courts, swimming pools, construction pits, and basements. It features shallow suction down to 2 mm residual water level and starts pumping from a water level of only 5 mm. Durable construction with easily replaceable parts ensures long-lasting use.
- Type: OD6601G-06
- Colour: blue
- Pump type: completely submersible centrifugal pump
- Impeller type: vortex impeller
- Motor type: oil-filled motor
- Fuse: built-in thermal protection
- Seal: mechanical seal (ceramic on carbon)
- Immersion depth: 7 meters
- Material impeller: GFK
- Material impeller housing: aluminium with epoxy coating
- Material motor housing: epoxy-coated aluminium
- Material pump shaft: stainless steel
- Liquids: clean and slightly contaminated water, max temperature +50°C
- Pumps down to: 2 mm, starts pumping at 5 mm
- Connections: 1/2", 3/4", 1" hose connection and 1.1/4" internal thread
- Dimensions: diameter 160 mm, height 307 mm
- Weight: 5.2 kg
- Amperage: 1 A
- Shaft power: 0.19 kW, 0.26 hp
- Cable: 10 metre neoprene H07RN8-F with earthed plug
- Product code: 90.05.239
- EAN code: 7630046626891
- Pipe diameter pressure: 1.1/4"
- Pipe diameter suction: -
- Pump type: Submersible pump
- Medium: Water
- Particle size: 2 mm
- Discharge head Max.: 6.5 m
- Voltage: 230 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: No
- Free flow (L/Hour): 6000
- Capacity 5 meter (L/hour): 2200
-
