The Johnson Pump 56-47455-03 AquaH water-heating unit delivers a 22-liter hot water supply in a round AISI 316 stainless steel tank, combining 230V AC electric heating (500W Incoloy element) with a secondary heat source such as an engine or generator cooling circuit. A built-in safety thermostat helps control water temperature during electrical operation, while the compact form and listed dimensions support straightforward integration into smaller onboard systems.
- Description
- Ask a Question
-

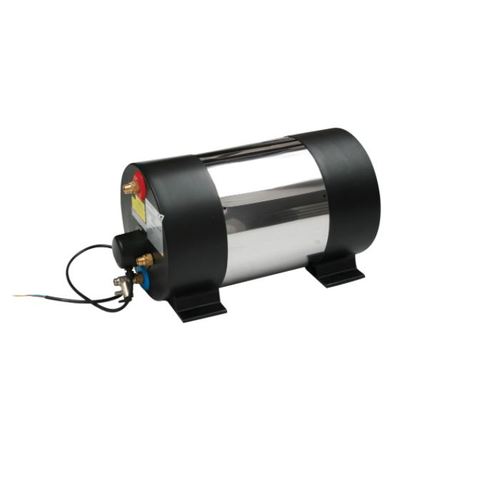

Johnson Pump 56-47455-03 AquaH 22L Marine Water Heating Unit
The AquaH range is built for onboard hot water generation using corrosion-resistant AISI 316 stainless steel construction. This 22-liter round model supports dual heating—electric power and a secondary heat source—helping maintain hot water availability even when the engine is not running, provided 230V AC is available.
Application
- Marine hot water supply for onboard systems
- Dual heating via electric operation and a secondary heat source
- Secondary heat source example: engine cooling circuit
- Secondary heat source example: generator set cooling circuit
Technical Specifications
Brand Johnson Pump Part Number 56-47455-03 Article Number 66564745503 EAN 8719182077985 Product Portfolio Water Heater Volume 22 Liter Voltage 230 V AC Nominal Power 500 W Heating Element Material Incoloy Construction Material AISI 316 Stainless Steel Model Round Weight 10 kg Shipping Weight 9.80 kg
Product Details
- Designed for energy-efficient smaller systems with 500W electrical heating
- Supports continuous hot water supply when the engine is not running (with 230V AC available)
- Includes a safety thermostat for setting water temperature during electrical operation
Dimensions
Dimension A 322 mm Dimension B 290 mm Dimension C 235 mm Dimension D 325 mm Dimension E 410 mm Dimension F 485 mm
Features
- Dual heating: electric and secondary heat source
- AISI 316 stainless steel construction for marine use
- Incoloy electric heating element (500W)
- Safety thermostat for temperature control during electrical operation
-
