ID
1330923
$ 863.30
1-2 weeks delivery time
-
+
The Johnson Pump 10-24139-1 self-priming bronze impeller pump is an F7-size engine cooling unit built for dependable cooling-water circulation in marine engine systems. A flange-mounted design with a bronze pump body and flange adapter supports durable installation, while 1" BSP internal-thread ports and a 1/1 cam help match common engine-room plumbing and drive requirements. Supplied with an MC97 impeller, it also serves as a flexible alternative to several SPX Johnson Pump variants by allowing changes to cam, gear, or threaded connections as needed.
- Description
- Ask a Question
-

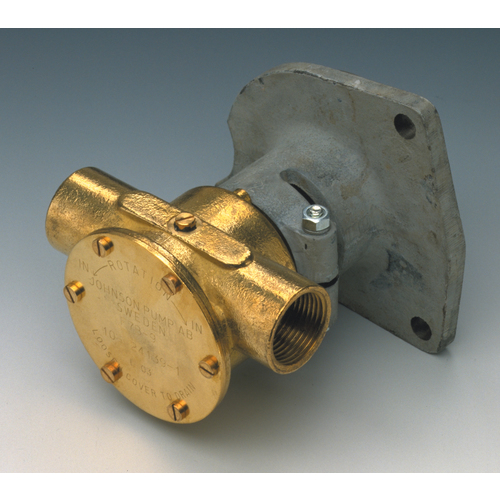

Johnson Pump 10-24139-1 Self-Priming Engine Cooling Impeller Unit
The Johnson Pump 10-24139-1 is a self-priming flexible-impeller cooling-water pump in size F7 (F7B-9). It uses a bronze pump body for durability in marine environments and is intended for engine cooling duties where reliable suction lift and steady circulation are required.
Application
- Use: Engine cooling (cooling-water circulation)
- Pump type: Self-priming flexible impeller pump
- Liquids: Fresh water, saltwater, and mild chemicals (not suitable for gasoline or severe solvents)
Compatibility
Typical applications mentioned include the following engines and marine installations:
- Ford 2700 Series
- CPower 2720
- CPower 4.254
- CPower 6.216
- CPower 6.363TC
- CPower TCIC
- CPower 6.380
- CT Marine CT 150
- Dover 2725
- Dolphin Marine Super Saiph II
- Ford 2700 Turbo
- Ford 2704ET
- Hendy Lennox 2720
- High Power Marine 2715E
- High Power Marine 2715E
- Meakes JG JGM 4150D
- Meakes JG JGM 6220D
- Mercraft 150
- Mercraft 180
- Mermaid Marine 397
- Mermaid Marine 595
- Mermaid Marine Flat Four
- Mermaid Marine Flat Six
- Mermaid Marine Mariner
- Mermaid Marine Turbo Four
- Nedalo 2715
- Nedalo 2715E
- Rodahl Marin 2710
- Rodahl Marin 2715
- Rodahl Marin 2722
- Rodahl Marin 2725
- Rodahl Marin 2726
- Rodahl Marin 2728
- Rodahl Marin 2704ET
- Sabb F 6.363 T
- Sabb F 6.363 TI
- Sabb F 6.595T
- Sabb F 6.595TI
- Sabb F 6.595TIP
- Sabre 180
- Sabre 212
- Telva Oy 2725 E
- Telva Oy 2726 T
- Telva Oy 2728 TIM
- Tempest 0,208
- Thornycroft 360
- Thornycroft L
- Thornycroft T 360
- Thornycroft 1
Technical Specifications
Brand Johnson Pump Part Number 10-24139-1 Pump Size F7 Model F7B-9 Mounting Type Flange Connection 1" BSP (internal thread) Cam 1/1 Impeller Included MC97 Impeller Hub Spline Drive Material Bronze Drive / Shaft End Shaft with Thread Shipping Weight 4.10 kg Product Portfolio Impeller Pumps; Cooling Water Pumps
Product Details
- Construction: Bronze pump body with flange adapter
- Impeller material (as stated): Neoprene impeller
- Shaft material (as stated): Stainless steel shaft
- Reference number (as stated): 6610241391
- Service kit (order): 09-47425
- Impeller kit: 09-1028BT-1
Alternatives and Variants Mentioned
- Alternative to SPX Johnson Pump 10-24139-2 (same pump except for the cam; cam to replace with 2/3 cam 01-42442)
- Alternative to SPX Johnson Pump 10-24139-3 (same pump but without gear; if required, gear 01-35200 can be ordered separately)
- Alternative to SPX Johnson Pump 10-24139-4 (differs in cam and gear; cam to exchange for 2/3 cam 01-42442; if required, gear 01-35200 can be ordered separately)
- Alternative to SPX Johnson Pump 10-24139-5 (difference is threaded connections: 1" BSP on 10-24139-1 vs 1" NPT on 10-24139-5)
- Alternative to SPX Johnson Pump 10-24139-7 (different threaded connections and no gear; if needed, gear 01-35200 can be ordered separately)
-
