The Johnson Pump 10-13373-07 Viking Power vacuum pump unit uses dual valves to support vacuum toilet systems and to drain water from showers, tubs, and bilges. It runs on 12V DC (also referenced as 12/24V DC with built-in thermal protection) and is built with a nylon housing, nitrile rubber valves, and a reinforced nitrile rubber diaphragm for dependable marine and industrial service. Specifications list a 1-1/2 inch (38 mm) hose connection, weight of 5.1 kg (with a separate shipping weight of 6.90 kg), and capacities stated as 32 liters per minute and also 24 liters per minute max output depending on the provided data.
- Description
- Ask a Question
-

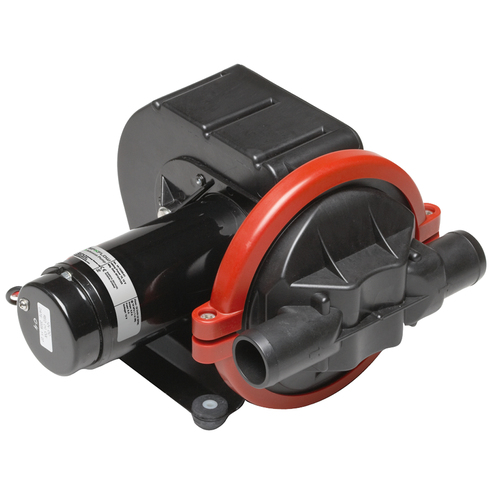

Johnson Pump 10-13373-07 Viking Power Vacuum Diaphragm Pump Unit
The Johnson Pump 10-13373-07, also referenced as the Viking Power 32 Vacuum Pump and Viking Power Vacuum, is a vacuum diaphragm pump designed for marine and industrial duties. With dual valves and a robust material package, it supports vacuum toilet systems and helps manage water and waste handling tasks such as shower, tub, and bilge drainage.
Application
- Vacuum toilet systems
- Drainage of water from showers
- Drainage of water from tubs
- Bilge water pumping
- Grey water pumping
- Toilet discharge handling
- Wastewater and black wastewater pumping (specifically referenced as engineered for black wastewater)
- Vacuum system installation (self-priming referenced up to 5 m)
Technical Specifications
Brand Johnson Pump Part Number 10-13373-07 Article Number 66101337307 EAN 8719182058489 Model Viking Power Vacuum Voltage 12V (also listed as 12/24V DC with built-in thermal protection) Motor Current (At 0.1 Bar) 3.3 A (12V); 1.6 A (24V) Current Draw (Listed) 3.5 A at 12V Max Amperage / Fuse Size (Listed) 6.1 A max; 12 A fuse Capacity (Listed) 32 L/min (also listed as max output 24 L/min) Self-Priming (Listed) Up to 5 m head Connection Size Ports for 38 mm (1 1/2 inch) ID hose Housing Material Nylon Valve Material Nitrile rubber (oil resistant referenced) Diaphragm Material Reinforced nitrile rubber Weight (Listed) 5.1 kg (11.2 lbs) Shipping Weight (Listed) 6.90 kg Product Portfolio (Listed) Electric bilge pumps
Dimensions
- Length: 357 mm (14 ft)
- Width: 271 mm (10.7 ft)
- Height: 192 mm (7.6 ft)
- Dimensions (also listed): 340 x 271 x 192 mm
- Dimensions (also listed): Length 34.0 cm / Width 27.1 cm / Height 19.2 cm
Product Details
- Dual valves enable use in vacuum toilet systems.
- Designed to drain water from showers and tubs, and handle bilge water.
- Described as a robust single-chamber, self-priming diaphragm pump.
- Referenced as able to run dry and pump an air/water mixture.
- Compact design supports adaptable mounting and installation in a boat.
- Manual-crank backup is listed.
- Color is listed as grey in the product text.
Features
- Quiet operation is referenced.
- No filter required is listed.
- Built-in thermal protection is referenced for 12/24V DC operation.
- Materials specified for durability: nylon housing with nitrile rubber valves and diaphragm.
-
