Johnson Pump 09-843S-9 - Nitrile Impeller Service Kit for F3B-19 Pumps

ID 1330883

$ 36.93

1-2 weeks delivery time

- +

Add to cart

The Johnson Pump 09-843S-9 impeller service kit supplies a nitrile, oil-resistant replacement impeller with a single flat drive for impeller pump service. It is commonly used in the F3B-19 pump and is specified with a 45.2 mm outer diameter, 8 mm flat shaft dimension, and 12.8 mm width, plus an 8-blade design with a stainless insert material. The kit also includes gaskets, O-rings, and lubricant items listed for convenient maintenance support.

Description
Ask a Question

Johnson Pump 09-843S-9 Nitrile Impeller Service Kit

The Johnson Pump 09-843S-9 service kit is built around a nitrile impeller with a single flat drive, intended for routine replacement and maintenance of compatible impeller pumps. Its oil-resistant nitrile construction and included sealing components help support long-lasting operation in harsh conditions.

Application

Used e.g. in impeller pump F3B-19
Listed as a Johnson impeller for F3 pump
Mentioned as a Johnson impeller for F2 pump

Technical Specifications

Brand	Johnson Pump
Product Portfolio	Impeller
Material	Nitrile (oil resistant)
Impeller Hub	Single Flat Drive
Outer Diameter	45.2 mm (1.78 in)
Shaft Dimension	8 mm (0.31 in) Flat
Width / Depth	12.8 mm (0.5 in)
Number of Blades	8
Insert Material	Stainless
EAN	8719182068082
Article Number	6609843S-9
Reference	2
Shipping Weight	0.10 kg

Product Details

Impeller type: Nitrile impeller with single flat drive
Common pump example: F3B-19
Sealing components included: gasket 01-43142, gasket 37-2105117-3, O-ring 0.2173.436, O-ring 0.2173.452

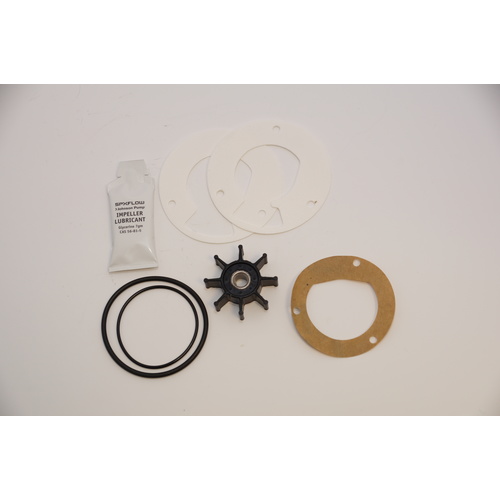

Kit Contents

Impeller 09-843S-9
5 x gasket
1 x grease
2 x O-ring
Also stated: includes O-rings, gaskets, and glycerine

Features

Oil-resistant nitrile material for demanding service
Single flat drive hub configuration
Includes listed gaskets and O-rings to support service work
