ID
1330882
$ 564.33
1-2 weeks delivery time
-
+

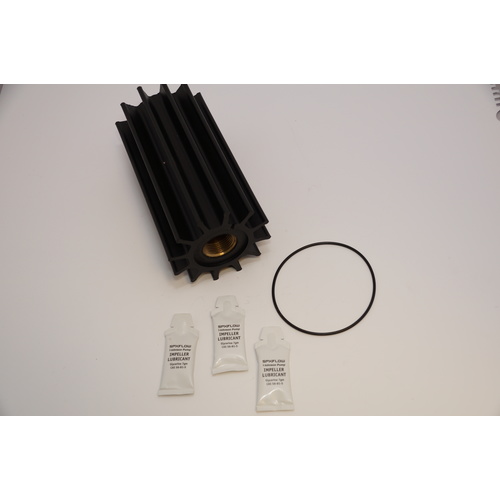

The Johnson Pump 09-842B impeller service kit delivers dependable cooling-water flow for Johnson Pump F98 pump applications with a neoprene, spline-drive impeller design. The kit includes O-ring 0.2172.142 and lubricant (glycerine and grease) to support service work, and it is listed as compatible with Johnson Pump type F98B and pumps 10-00010-01, 10-13377-01, and 10-00010-02. With a 95 mm outer diameter, 180 mm depth/width, 12 blades, and a brass insert, it is commonly found on MAN engine models D2862 LE3XX, D2862 LE433, D2862LE433, D2862 LE4XX, and TAMD 6060A.
- Description
- Ask a Question
-
Johnson Pump 09-842B Neoprene Impeller Kit for F98 Pumps
Keep engine cooling-water circulation performing as intended with the Johnson Pump 09-842B impeller service kit. Built around a neoprene impeller with a spline drive, this kit is intended for F98 pump service and includes the sealing and lubrication items needed for maintenance.
Application
- Compatible pump type: Johnson Pump F98B
- Compatible pumps: Johnson Pump F98
- Other listed pump models: 10-00010-01
- Other listed pump models: 10-13377-01
- Other listed pump models: 10-00010-02
- Common engine fitment: MAN D2862 LE3XX
- Common engine fitment: MAN D2862 LE433
- Common engine fitment: MAN D2862LE433
- Common engine fitment: MAN D2862 LE4XX
- Common engine fitment: TAMD 6060A
Technical Specifications
Brand Johnson Pump Product Portfolio Impeller Part Number 09-842B Article Number 6609842B EAN 8719182044925 Material Neoprene Outer Diameter 95 mm (3.74 in) Depth / Width 180 mm (7.09 in) Impeller Hub Spline Drive Shaft Dimension Splines Shaft Diameter 25.4 mm Number of Blades 12 Insert Material Brass Shipping Weight 2.00 kg Reference 19
Product Details
- Impeller type: Neoprene impeller with spline drive
- Service kit contents: Impeller 09-842B
- Service kit contents: 1 x O-ring (0.2172.142)
- Service kit contents: 3 x grease
- Service kit contents: Glycerine
- Listed as alternative to MAN part numbers: 51.06500-7084
- Listed as alternative to MAN part numbers: 51065007084
- Listed as alternative to MAN part numbers: 51.06500.7084
- Listed as alternative to MAN part numbers: 51.06500-7074
- Listed as alternative to MAN part numbers: 51065007074
- Listed as alternative to MAN part numbers: 51.06500.7074
- Listed as alternative to MAN part numbers: 51.06506-0127
- Listed as alternative to MAN part numbers: 51065060127
- Listed as alternative to MAN part numbers: 51.06506.0127
Features
- Neoprene construction intended for cooling-water service
- Spline-drive hub for correct fit on listed F98 pump applications
- Includes O-ring 0.2172.142 plus lubrication items to support maintenance
The impeller is a critical wear component that helps maintain sufficient cooling-water flow; replacing it on schedule helps reduce the risk of reduced circulation caused by wear or fatigue.
-
