ID
1330879
$ 38.65
1-2 weeks delivery time
-
+

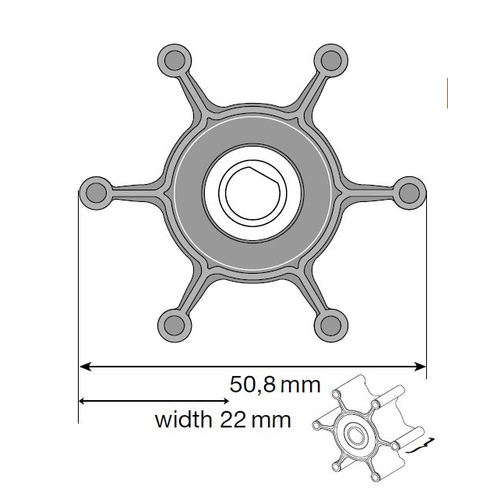

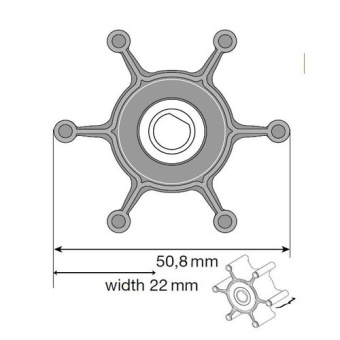

The Johnson Pump 09-824P-9 flexible nitrile impeller kit is built for diesel or light oil transfer in compatible Johnson F4 and F38 pumps. Its 6-blade design with a single flat drive suits an 8 mm flat shaft and measures 50.8 mm outer diameter by 22 mm width. Supplied as a service kit with an O-ring plus installation aids and instructions, it also replaces the Jabsco 6303-0003 impeller for Europe and USA.
- Description
- Ask a Question
-
Johnson Pump 09-824P-9 Nitrile Impeller Service Kit
The Johnson Pump 09-824P-9 is a genuine flexible impeller made from nitrile for use in environments where diesel or light oils are present. Designed for Johnson F4 and F38 series pumps, its 6-blade profile helps restore proper pump performance when servicing worn impellers.
Application
- Media: Diesel and light oils
- Compatible pump series: Johnson Pump F4 series
- Compatible pump series: Johnson Pump F38 series
Compatibility
- F4B-19 pumps (10-24512-01, 10-24512-02, 10-24689-01, 10-24689-02)
- F4B-1907 pumps (10-24512-03, 10-24512-04, 10-24689-03, 10-24689-04)
- F38B-19 pumps (10-24727-01, 10-24727-02)
- F38B-1907 pumps (10-24727-03, 10-24727-04)
Technical Specifications
Brand Johnson Pump Product Type Impeller Material Nitrile Number of Blades 6 Outer Diameter 50.8 mm (2 in); also listed as 51 mm Shaft Diameter 8 mm (0.31 in), flat Width / Depth 22 mm (0.87 in) Impeller Hub / Drive Single Flat Drive Insert Material Plastic Shipping Weight 0.10 kg Article Number 6609824P-9 EAN 8719182044925 Reference 6
Product Details
- Kit contents: Impeller 09-824P-9, O-ring, lubrication gel, and installation manual
- Kit contents (also listed): Grease and glycerine
- Replacement for: Jabsco 6303-0003 (Europe and USA)
- Alternative to: Ancor J050011
Features
- Oil-resistant nitrile construction for diesel and light oil duty
- Six-blade flexible impeller design
- Service-kit packaging supports straightforward installation
-
