ID
1330861
$ 125.68
1-2 weeks delivery time
-
+
The Johnson Pump 09-47316-04 vacuum valve in 22 mm size helps protect engines and water pump systems from water ingress and unwanted siphoning. It operates up to a maximum ambient temperature of 60°C and opens at a pressure equivalent to a 3–5 cm water column. Built from high-quality, non-corrosive plastics with seawater-resistant materials, it is suitable for fresh water and glycol at typical concentrations, while the leak-proof design and easy installation support dependable everyday operation.
- Description
- Ask a Question
-

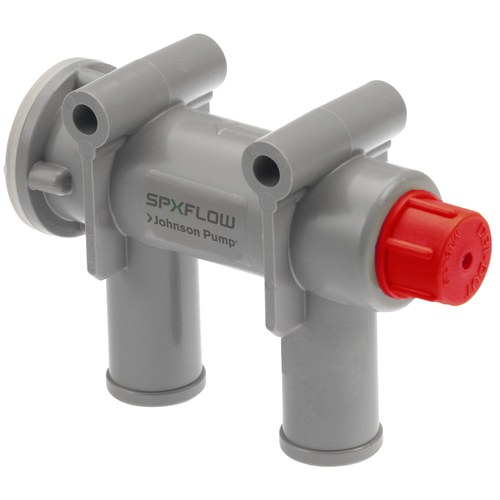

Johnson Pump 09-47316-04 22 mm Anti-Siphon Vacuum Valve
The Johnson Pump 09-47316-04 is a 22 mm vacuum valve designed to help prevent water infiltration into the engine and protect system integrity by reducing the risk of siphoning in water pump installations. Its non-corrosive construction and leak-proof design make it a dependable choice for marine environments.
Application
- Engine water ingress protection
- Anti-siphon protection in water pump setups
- Suitable for 22 mm hose systems
- Intended for marine and water pump installations
Technical Specifications
Brand Johnson Pump Part Number 09-47316-04 Article Number 66094731604 Hose Size 22 mm Maximum Ambient Temperature 60°C Valve Opening Threshold Pressure equivalent to a 3–5 cm water column Materials High-quality plastics Media Compatibility Fresh water, seawater, and glycol at typical concentrations Shipping Weight 0.40 kg
Product Details
- Seawater resistant materials for marine use
- Should not be exposed to oils and greases
- Clean or replace promptly if the valve becomes dirty
- Available in 5 different valve sizes (this version: 22 mm)
Features
- Non-corrosive
- Easy to install
- Leak-proof
-
