The Johnson Pump 80-47231-02 AquaT Silent Electric Compact toilet system delivers quiet flushing and draining for marine installations using a 24V supply and 7A operation. It combines a separate flush pump and a powerful waste water pump, includes a 3-way control panel, and uses a self-priming Aqua-Jet 13 L/min pump with 19 mm hose connections and a filter for seawater flushing. A compact pure white glass-ceramic bowl, soft-close plastic seat and cover, flexible base hole pattern, and a 360° rotatable drain elbow support straightforward installation and maintenance.
- Description
- Ask a Question
-

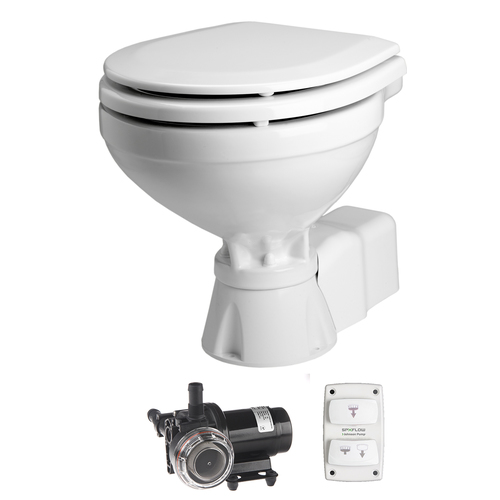

Johnson Pump 80-47231-02 Compact 24V Silent Electric Marine Toilet
The Johnson Pump AquaT Silent Electric Compact system is an electric marine toilet designed to reduce noise while providing dependable flushing and draining on boats and yachts. Its compact format helps when space is limited, and the design uses separate pumps for flush water and waste water handling to support low-noise operation.
Application
- Marine toilet installation for boats and yachts
- Quiet flushing and draining operation
- Seawater flushing (via included pump and filter)
Technical Specifications
Part Number 80-47231-02 Article Number 66804723102 EAN 8719182079606 Model Compact Voltage 24V Current 7A Maximum Power Consumption 10A Recommended Fuse 20A Weight 9.6 kg Shipping Weight 17.00 kg Inlet Diameter 19 mm Outlet Diameters 38 mm and 25 mm Connections 38 mm outlet, 19 mm inlet Self-Priming Flush Pump Capacity 13 liters/minute Overall Dimensions Height 39.5 cm; Width 34.0 cm; Depth 44.1 cm (with lid closed and waste water pump facing backwards) Installation Dimensions A 120 mm Installation Dimensions B 390 mm Installation Dimensions C 335 mm Installation Dimensions D 420 mm Installation Dimensions E 215 mm Installation Dimensions F 290 mm Installation Dimensions G 700 mm
Product Details
- Bowl type: Compact bowl (China bowl)
- Bowl material: Pure white glass ceramic
- Seat: Soft-close plastic seat and cover included
- Control: Supplied 3-way control panel (Button 1: drain and flush; Button 2: flush or drain)
- Pumps: Separate flush pump and built-in drain pump for low-noise operation
- Flush water pump: Self-priming Johnson Pump Aqua-Jet pump with 19 mm (3/4 in) hose connections and filter
- Drain elbow: Multi-angled drain elbow, 360° rotatable
- Installation: Flexible hole pattern on the base for easier replacement of common toilet footprints
- Maintenance: Standard fastening enables maintenance without special tools
- Included references: Includes 10-13399-06 or 10-13399-04
Features
- Quiet operation supported by separate waste water and flush pumps
- Compact design for space-conscious installations
- Consistent flushing and draining via the supplied control panel
- Easy installation and service-friendly construction
-
