ID
1331024
$ 272.56
1-2 weeks delivery time
-
+
The Johnson Pump AquaT Manual Compact toilet assembly delivers dependable, hand-powered marine sanitation in a space-saving format. Its ergonomic piston pump is self-priming and can be mounted for left-hand or right-hand use, while the compact china bowl and corrosion-resistant materials support long-term operation onboard. With a soft-close plastic seat and cover plus 19 mm inlet and 38 mm outlet connections, it is designed for hygienic, efficient rinsing and straightforward installation.
- Description
- Ask a Question
-

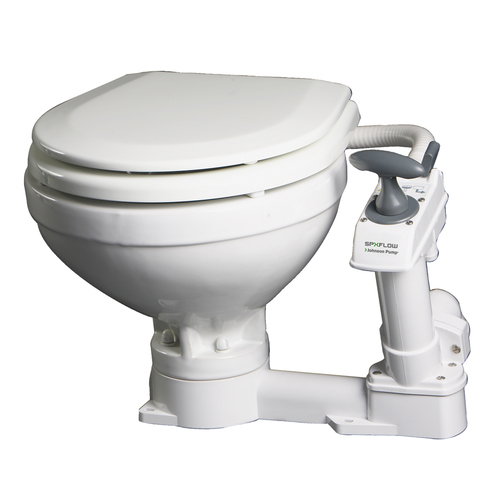

Johnson Pump 80-47229-01 AquaT Compact Manual Toilet Unit
The Johnson Pump AquaT Manual Compact is a space-saving marine toilet designed for reliable onboard sanitation where installation space is limited. It combines a compact china bowl with corrosion-resistant components and a hand-powered piston pump for efficient, hygienic operation.
Application
- Marine sanitation installations
- Boats
- Yachts
- Other marine vessels where space is limited
Technical Specifications
Brand Johnson Pump Part Number 80-47229-01 Article Number 66804722901 EAN 8719182079484 Product Portfolio Manual Toilets Model Compact Bowl Type Compact China Bowl Inlet Connection 19 mm (3/4 in) Outlet Connection 38 mm (1-1/2 in) Weight 9.6 kg Shipping Weight 12.00 kg Dimensions (With Lid Closed) Height 35 cm / Width 46.0 cm / Depth 41 cm Dimensions (A) 345 mm Dimensions (B) 650 mm Dimensions (C) 215 mm Dimensions (D) 425 mm Dimensions (E) 450 mm Dimensions (F) 170 mm
Product Details
- Manual operation: Hand-powered piston pump
- Left or right-hand installation: Pump can be mounted on either side of the bowl (see instructions)
- Materials: Corrosion-resistant components with a china bowl
- Seat and cover: Soft-close plastic seat and cover included
- Installation support: Flexible hole pattern on the base for easier replacement with common toilets
- Drain fitting: Multi-angled drain elbow, 360° rotatable
- Winterization and access: Double-sealed drain plug for draining in winter and as access for easy cleaning
- Available models (series): Super Compact, Compact, Comfort
Features
- Powerful, self-priming suction and pressure piston pump
- Generates strong turbulence for efficient rinsing
- Hygienically smooth surface for easy cleaning
- Ergonomically designed handle and conveniently positioned flush control lever for easy operation
- Angled pump housing with long stroke for easier operation
- Spring-assisted valve design for improved suction behavior
- Continuous 38 mm waste water pipe diameter helps minimize clogging
- Standard fastening enables maintenance without special tools
-
