ID
1330859
$ 106.36
1-2 weeks delivery time
-
+
The Johnson Pump 09-47316-02 vacuum valve unit for 16 mm hose installations helps protect the engine from water ingress and supports efficient marine plumbing performance. Built from high-quality plastics, it is non-corrosive, seawater resistant, easy to install, and designed not to leak. It operates up to a maximum recommended ambient temperature of 60°C and opens at a pressure equivalent to a 3–5 cm water column; it is suitable for fresh water and glycol in typical concentrations, but should be kept away from oils and greases and cleaned or replaced promptly if contaminated.
- Description
- Ask a Question
-

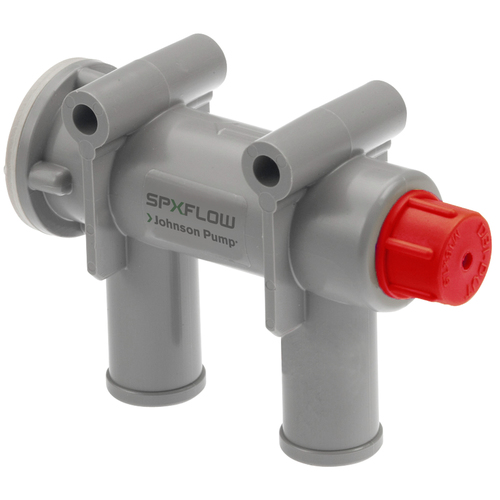

Johnson Pump 09-47316-02 16 mm Vacuum Valve Unit
The Johnson Pump vacuum valve is an affordable, reliable safeguard against water ingress into the engine, helping prevent costly damage. It is designed for marine plumbing use where maintaining system efficiency and preventing backflow are essential.
Application
- Engine protection against water ingress
- Marine plumbing installations to help maintain system efficiency and prevent backflow
- Suitable for 16 mm diameter hoses
Compatibility
- Fresh water systems
- Glycol in typical concentrations
Technical Specifications
Brand Johnson Pump Part Number 09-47316-02 Article Number 66094731602 Hose Diameter 16 mm Maximum Recommended Ambient Temperature 60°C Opening Pressure Equivalent to a 3–5 cm water column Material High-quality plastics Shipping Weight 0.40 kg
Product Details
- Non-corrosive construction for marine environments
- Seawater-resistant materials
- Should be kept away from oils and greases
- If contaminated, the valve should be cleaned or replaced promptly
- Also referenced as part of a vented loop for 16 mm hoses that includes a vacuum valve
Features
- Non-corrosive
- Easy to install
- Does not leak
- Made of high-quality plastics
- Available in 5 different sizes
-
