ID
1330848
$ 34.04
1-2 weeks delivery time
-
+
The Johnson Pump 09-1052S-9 impeller service kit delivers dependable flexible-impeller performance for TA3P pump applications and listed Johnson F3 pump models. Built from oil-resistant nitrile with a six-blade design, it matches a 45.2 mm outer diameter, 8 mm flat shaft size, and 12.8 mm width for correct fit and pumping action. The kit is supplied with the impeller plus two gaskets, two O-rings, grease, and glycerine to support service work in systems where diesel or light oils may be present.
- Description
- Ask a Question
-
Johnson 09-1052S-9 Nitrile Flexible Impeller Service Kit
Keep your pump running smoothly with the Johnson Pump 09-1052S-9, a nitrile flexible impeller designed for TA3P pump use and specified Johnson F3 pump models. The oil-resistant nitrile construction makes it suitable for environments where diesel or light oils are present, while the six-blade geometry supports consistent pumping performance.
Application
- Designed for the TA3P pump
- Used, for example, in the macerator pump TA3P10
- Suitable for use where diesel or light oils are present
Compatibility
- F3B-12V pumps (10-22352-1, 10-24123-1, 10-24123-2)
- F3B-24V pumps (10-22352-2)
- F3B-19 12V pumps (10-24182-1, 10-24182-7, 10-24516-01, 10-24516-05)
- F3B-19 24V pumps (10-24182-2, 10-24182-8, 10-24516-02, 10-24516-06)
- F3B-19 110V pumps (10-24551-02, 10-24551-04)
- F3B-19 230V pumps (10-24551-01, 10-24551-03)
- F3B-1907 12V pumps (10-24182-3, 10-24516-03)
- F3B-1907 24V pumps (10-24182-4, 10-24516-04)
- F3P10 pumps (10-32579-1)
- F3P10-12V pumps (10-22353-1)
- F3P10-24V pumps (10-22353-2)
- F3S-19 110V pumps (10-24565-02)
- F3S-19 230V pumps (10-24565-01)
- F3S-19 1ph 110V pumps (10-24609-02)
- F3S-19 1ph 230V pumps (10-24609-01)
- TA3P10-19 12V pumps (10-24236-1, 10-24236-2, 10-24453-04)
- TA3P10-19 24V pumps (10-24453-05)
- TA3P10-1907 12V pumps (10-24453-01)
- TA3P10-1907 24V pumps (10-24453-02)
Technical Specifications

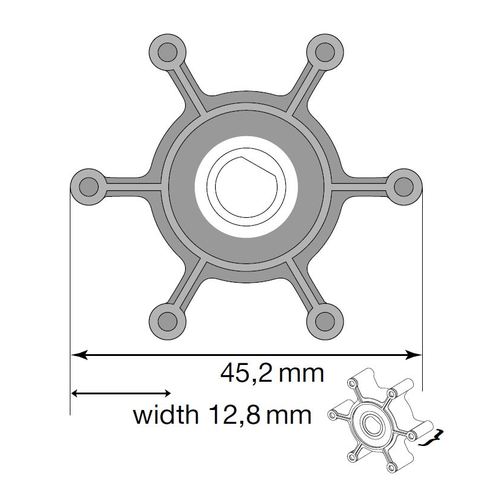

Brand Johnson Pump Product Portfolio Impeller Part Number 09-1052S-9 Article Number 66091052S-9 EAN Number 8719182044925 Pump Model TA3P10 Reference 3 Material Nitrile (Oil Resistant) Number of Blades 6 Outer Diameter 45.2 mm (1.78 in) Shaft Diameter 8 mm (0.31 in), Flat Width / Depth 12.8 mm (0.5 in) Impeller Hub Single Flat Drive Insert Material None Shipping Weight 0.10 kg
Product Details
- Kit Type: Impeller service kit
- Included: Impeller 09-1052S-9
- Included: 2 x gaskets
- Included: 2 x O-rings
- Included: Grease
- Included: Glycerine
-
