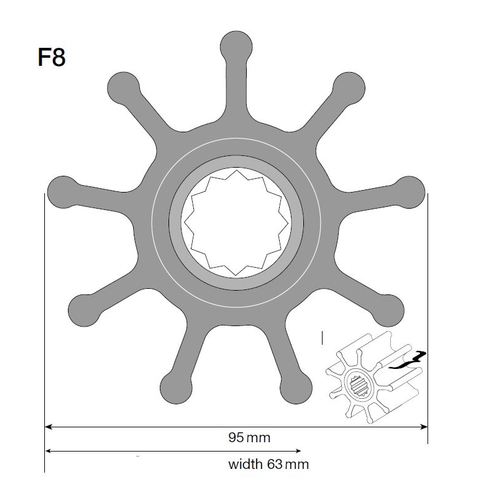

The Johnson Pump 09-1029B impeller service kit delivers a dependable neoprene replacement impeller for SPX Johnson Pump F8 pumps, using a spline drive for secure fitment. With a 95 mm outer diameter and 63 mm width (also listed as 63 mm depth and 63.2 mm depth in the provided data), it supports cooling-related impeller replacement needs and includes glycerine, washers, and grease to simplify service.
- Description
- Ask a Question
-
Johnson Pump 09-1029B Neoprene F8 Pump Impeller Kit
The Johnson Pump 09-1029B is a neoprene impeller service kit for Johnson F8 pump applications. It combines a spline-drive impeller with included service items (including glycerine) to support straightforward replacement in cooling-focused installations.
Application
- Compatible with SPX Johnson Pump F8 pumps
- Cooling applications (as stated in the provided data)
Compatibility
- SPX Johnson Pump F8 pumps
Technical Specifications
Brand Johnson Pump Part Number 09-1029B Article Number 66091029B EAN 8719182044925 Material Neoprene Outer Diameter 95 mm (3.74 in) Width 63 mm Depth 63 mm; also listed as 63.2 mm (2.48 in) Hub / Drive Type Spline Drive Shaft Diameter 25.4 mm Number of Blades 9 Insert Material Brass Reference 15 Shipping Weight 0.80 kg
Product Details
- Product Type: Impeller service kit
- Pump Model: F8
- Kit Contents (as listed):
- Impeller 09-1029B
- Grease
- 2 washers
- Glycerine (included)
Replaces / Alternative To
- Ancor J050005
- Caterpillar 1L4774
- Cummins 160596
- Cummins 166758
- Cummins 556540
- Cummins 556850
- Cummins 21601R
- Detroit Diesel 5193553
- Perkins 460027
- Vetus IMP00901
- Volvo 807904
- Volvo 825942
- Volvo 875660
- 836-0001
- 17935-0001
Features
- Neoprene impeller designed for F8 pumps
- Spline-drive hub for the specified shaft interface
- Service kit format with included glycerine and listed service items
-
