ID
1330843
$ 51.76
1-2 weeks delivery time
-
+

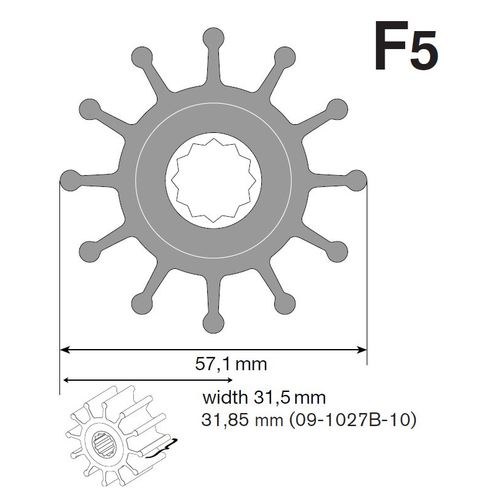

The Johnson Pump 09-1027B-9 flexible impeller kit is a 12-blade nitrile replacement designed for Johnson Pump F5 and F5B pump applications, including use where diesel or light oils are present. With a 57.1 mm outer diameter and 31.5 mm width, it supports efficient pumping performance, while the splined drive for a 16 mm shaft ensures correct fit. Supplied as a service kit with lubrication gel or grease and an O-ring, it is intended to simplify installation and restore reliable operation.
- Description
- Ask a Question
-
Johnson Pump 09-1027B-9 Nitrile Impeller Service Kit for F5B
The Johnson Pump 09-1027B-9 is a genuine flexible impeller kit engineered for F5 and F5B pump models. Built from nitrile material, it is intended for pumping applications where diesel or light oils may be present, helping maintain consistent flow and dependable pump performance after service.
Application
- Pump model: F5
- Compatible with: Johnson Pump pump type F5B
- Use environment: Intended for use where diesel or light oils are present
Compatibility
- F5B-19 (10-24188-1, 10-24188-2, 10-24188-4, 10-24188-5, 10-24188-7, 10-24188-8, 10-24188-10)
- F5B-1907 (10-24188-1, 10-24188-2, 10-24188-4, 10-24188-5, 10-24188-7, 10-24188-8, 10-24188-10)
- F5B-39 (10-22044-3, 10-22044-4, 10-24210-2, 10-24210-4, 10-24210-6, 10-24210-8)
- F5B-392 (10-22044-3, 10-22044-4, 10-24210-2, 10-24210-4, 10-24210-6, 10-24210-8)
- F5B-3900 (10-22044-3, 10-22044-4, 10-24210-2, 10-24210-4, 10-24210-6, 10-24210-8)
- F5B-3920 (10-22044-3, 10-22044-4, 10-24210-2, 10-24210-4, 10-24210-6, 10-24210-8)
- F5B-39007 (10-22044-3, 10-22044-4, 10-24210-2, 10-24210-4, 10-24210-6, 10-24210-8)
- F5B-39207 (10-22044-3, 10-22044-4, 10-24210-2, 10-24210-4, 10-24210-6, 10-24210-8)
- F5B-89 (10-24073-3, 10-24073-4, 10-24073-7, 10-24073-8, 10-24571-02, 10-24571-14)
- F5B-892 (10-24073-3, 10-24073-4, 10-24073-7, 10-24073-8, 10-24571-02, 10-24571-14)
- F5B-8907 (10-24073-3, 10-24073-4, 10-24073-7, 10-24073-8, 10-24571-02, 10-24571-14)
- F5B-8927 (10-24073-3, 10-24073-4, 10-24073-7, 10-24073-8, 10-24571-02, 10-24571-14)
Technical Specifications
Brand Johnson Pump Product Portfolio Impeller Material Nitrile (oil resistant) Number of Blades 12 Outer Diameter 57.1 mm (also listed as 57 mm) Width / Depth 31.5 mm Impeller Hub Spline Drive Shaft Diameter 16 mm Insert Material Brass EAN 8719182044925 Article Number 66091027B-9 Replaces 1210-0003 Shipping Weight 0.20 kg
Product Details
- Kit contents: Impeller 09-1027B-9, grease or lubrication gel, O-ring
- Service kit note: Listed as including an O-ring 0.2173.475 and a bag of glycerine grease
- Also described as: Impeller for F5 pumps made of nitrile with splined hub, including cover seal
- Alternatives listed: Ancor J050407; Johnson Pump 08-1027B-9
Features
- Nitrile construction intended for pumping media containing mineral oil
- 12-blade design supports efficient operation and reliable performance
- Supplied with lubrication and instructions for easier installation
-
