ID
1330842
$ 40.91
1-2 weeks delivery time
-
+
The Johnson Pump 09-1027B-1 impeller service kit is built to restore reliable cooling performance in selected F5 pump applications, including SPX F5B pumps. It features an MC97/EPDM neoprene impeller with a spline drive, 57.1 mm outer diameter, 16 mm shaft diameter, and 12 blades, and it includes gaskets, O-rings, and glycerine grease to support a complete service. Designed for pumping simple media such as water and salt water, this kit also cross-references multiple alternative impeller part numbers for maintenance flexibility.
- Description
- Ask a Question
-
Johnson Pump 09-1027B-1 F5B Impeller Service Kit
The Johnson Pump 09-1027B-1 service kit provides the key wear components needed to service compatible F5-series impeller pumps. It combines an MC97/EPDM neoprene impeller with a spline-drive hub and includes seals and lubrication items to support consistent cooling-water flow in marine systems.
Application
- Service kit for the F5 pump
- Compatible with SPX F5B pumps
- Compatible with Johnson Pump pump type F5B
- Application listed as: some F5 Johnson Pumps
- Impellers made of MC97 are used for pumping simple media such as water and salt water
Compatibility
- Beta Marine
- BMW
- Bukh
- Ford
- Isuzu
- Kubota
- Lister
- Marine Power
- Mercedes
- Mermaid
- Nanni
- Perkins
- Thornycroft
- Vetus
- Volvo
- VM
- Yanmar
Technical Specifications

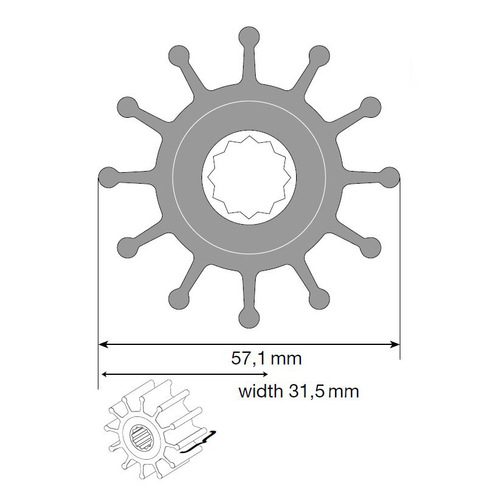

Brand Johnson Pump Product Portfolio Impeller Pump Model F5 Impeller Material MC97/EPDM Primary Construction MC97 Impeller Type Neoprene Impeller Drive Type Spline Drive Shaft Diameter 16 mm Outer Diameter 57.1 mm Diameter 57.1 mm (2-1/4 in) Width 31.5 mm Depth 31.85 mm (1-1/4 in) Number of Blades 12 Insert Material Brass Shipping Weight 0.20 kg EAN 8719182044925 Article Number 66091027B-1 Model 09-1027B-10 Shaft Dimension Splines
Product Details
- Kit includes: impeller 09-1027B-1
- Kit includes: 3 gaskets
- Kit includes: 2 O-rings
- Kit includes: glycerine grease
- Included gasket and seal references: 01-46540
- Included gasket and seal references: 01-42401
- Included O-ring and seal references: 0.2173.475
- Included O-ring and seal references: 0.2173.476
- Included O-ring and seal references: 01-46540-2
- Included O-ring and seal references: 01-45315
Features
- Stable pressure delivery over run time: helps ensure proper cooling flow and longer service life
- Excellent self-priming capability: provides sufficient cooling directly at start-up
- Correct impeller dimensions: manufactured to strict tolerances for optimum functionality
- Unique MC97 rubber compound: provides flexibility in self-priming, helps minimize failures due to fatigue, and supports a stronger hub connection to help prevent slippage
Alternative To / Replaces
- Ancor J050007
- Beta Marine 207-09042-KIT
- Beta Marine 207-80800
- Northern Lights 25-12060
- Onan 132-0162
- Perkins 0460038
- Perkins 460038
- Jabsco 1210-0001
- Johnson Pump 08-1027B-1
- Johnson Pump 08-1027BT
- Johnson Pump 09-1027BT
- Vetus IMP00201
- Vetus STM8003
- Vetus STM8074
- Volvo 3855546
- Volvo 825940
- Volvo 3856039
- Volvo 860203
- Volvo 875811
- Volvo 3858256
- Volvo 3862281
- Volvo 21213660
- Volvo 876243
- Volvo 3862567
- Volvo 877400
- Volvo 875811-2
- Volvo 3856029
- Volvo 21951346
- Westerbeke and Universal 302571
- Yanmar 129470-42530
- Yanmar 129670-42610
-
