ID
1330840
$ 30
1-2 weeks delivery time
-
+
The Johnson Pump 09-1026B-1 impeller kit is a 6-blade replacement impeller package for Johnson F4 and F5 pump applications, including F4B variants and F5B. Built in MC97/EPDM (MC97 construction noted) and supplied in black, it uses a through pin drive with a 12.7 mm (1/2 in) shaft size and a 50.8 mm (2.00 in) outer diameter with 22 mm (0.87 in) depth/width for a precise fit. The kit includes the impeller plus gaskets and grease, and it replaces multiple OEM part numbers listed for common marine engine brands.
- Description
- Ask a Question
-
Johnson Pump 09-1026B-1 Impeller Service Kit for F4 and F5 Pumps
The Johnson Pump 09-1026B-1 is an impeller kit intended for Johnson F4 and F5 pump service. With a 6-blade design and through pin drive interface, it is designed to deliver a strong, accurate fit for compatible pump models and listed engine applications.
Compatibility
Compatible pumps:
- F4B pumps
- F4B-4 pumps
- F4B-9 pumps
- F4B-903 pumps
- F4B/6-M pumps
- F5B pumps
- SPX F4 pumps
Suitable for engines (brands):
- Bukh engines
- Farymann engines
- Lombardini engines
- Perkins engines
- Volvo engines
- VM engines
- Westerbeke engines
- Yanmar engines
Technical Specifications

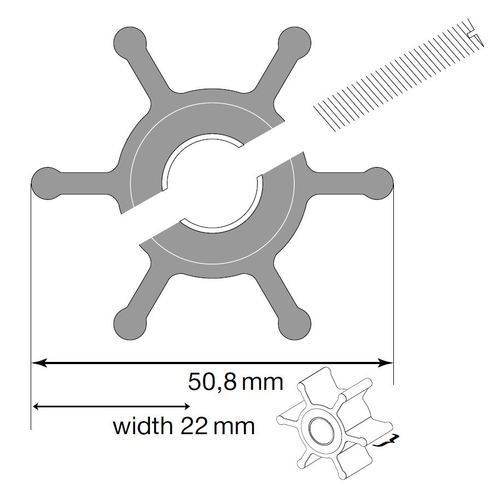

Brand Johnson Pump Product Type Impeller kit / impeller service kit Color Black Material MC97/EPDM (MC97 also specified) Insert Material Brass Number of Blades 6 Outer Diameter 50.8 mm (2.00 in) Diameter (Listed) 51 mm Width 0.87 in Depth / Overall Width 22 mm (7/8 in) Inner Diameter 12.7 mm, flat Impeller Shaft Diameter 12.7 mm (1/2 in) Drive Type Through Pin Drive (slotted shaft / through hole pin drive) Article Number 66091026B-1 EAN 8719182044925 Shipping Weight 0.10 kg
Product Details
- Included: Impeller 09-1026B-1
- Included: 2 gaskets
- Included: 1 grease
- Gaskets listed: 01-42391
- Gaskets listed: 01-45284
Replaces / Alternatives
- Jabsco 673-0001
- Northern Lights 25-12009
- Perkins 24880194
- Volvo Penta 804696
- Volvo Penta 875808
- Volvo Penta 897055
- Volvo 3593658
- Volvo 3593659
- Volvo 22222936
- Westerbeke 21218
- Yanmar 128990-42200
-
