ID
1353867
$ 160.47
1-2 weeks delivery time
-
+
The Flojet T5A01110 is an air-operated diaphragm pump for Bag-in-Box syrups, juice concentrates, teas, wines, and liquor, powered by CO2 or compressed air, maintaining constant dispensing pressure, high suction to empty syrup to minimal residual, fully automatic with external shutoff, compact design with quick disconnect fittings, and operates only during dispensing.
- Description
- Ask a Question
-

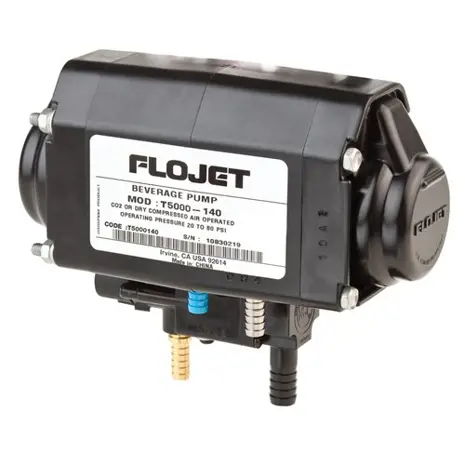

Flojet T5A01110 - T5000 Series Air Operated Diaphragm Pump
The Flojet T5A01110 is an air-operated diaphragm pump designed for dispensing Bag-in-Box (BIB) syrups, juice concentrates without pulp, teas, wines, and liquor. Powered by CO2 or compressed air, it maintains constant pressure at the dispensing valve and features high suction capability to empty syrup down to a minimum residual. Fully automatic, it operates only during dispensing and includes an external auto shutoff. The compact design with quick disconnection fittings allows fast and simple installation.
Technical Data
Pump Type Bag-in-Box (BIB) Syrup Pump Power Source Gas (CO2) / Air Driven Operation Fully Automatic, External Auto Shut Off Suction Capability High, empties syrup down to minimum residual Exhaust Port 1/4" (6.35mm) barbed CO2 Compliance EU Food Contact Regulation (EC) No. 1935/2004 Valve Output Four x 3.0 oz (89 ml) at 0.5 oz/sec or Two x 4.5 oz (133 ml) at 0.75 oz/sec
Brand: Flojet
Article: T5A01110 -
