ID
1350525
$ 115.96
1-2 weeks delivery time
-
+
The Flojet T5091119 is a T-Series air-operated diaphragm pump with a free-discharge flow rate of 7.6 L/min and automatic shutoff at 5.5 bar (80 PSI). It is self-priming up to 3 m and shuts off automatically when the tank or bag is empty. The unit operates from 1.1°C to 49°C and uses polypropylene, TPE, NBR, and stainless steel, with connections for pumped medium inlet (3/8 inch BP), pumped medium outlet (N/PT), and gas inlet (N/PT).
- Description
- Ask a Question
-

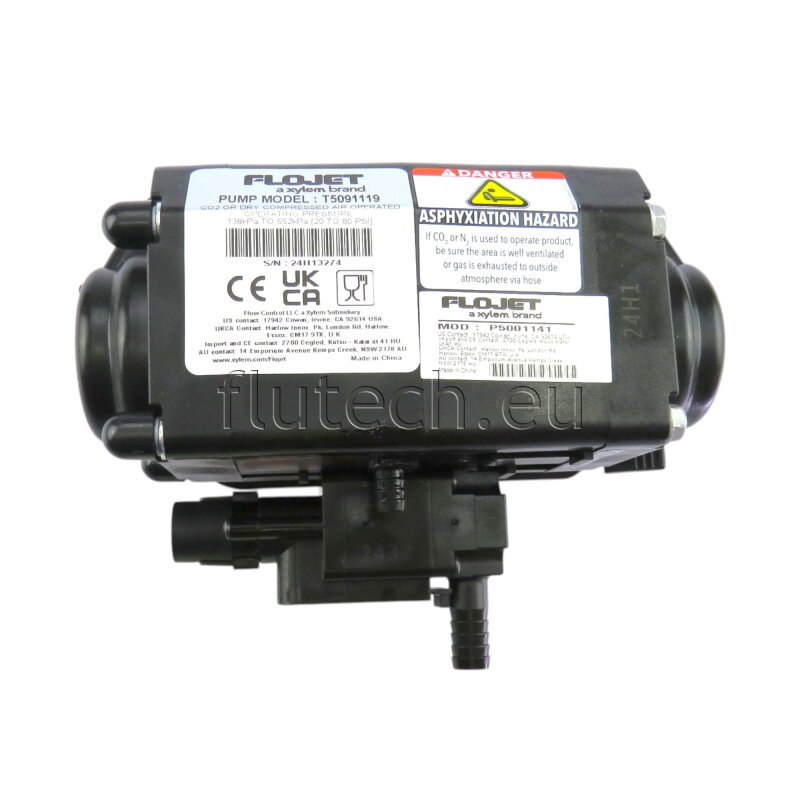

Flojet T-Series Air-Operated Diaphragm Pump T5091119
The Flojet T5091119 is a T-Series compressed-air diaphragm pump designed for pumping liquids using an air supply. It provides automatic shutoff at the set pressure and is designed to stop when the connected tank or bag is empty.
Technical Specifications
Series T-Series Pump Type Air-operated diaphragm pump Delivery Rate (Free Discharge) 7.6 L/min (without back pressure) Automatic Shutoff Pressure 5.5 bar (80 PSI) Self-Priming Up to 3 m Automatic Shutoff Shuts off automatically when the tank/bag is empty Max Temperature Range 1.1°C to 49°C Connections Pumped medium IN: 3/8 inch BP; pumped medium OUT: N/PT; gas IN: N/PT Dimensions (H x W x L) 15.70 cm x 13.36 cm x 7.35 cm Materials Polypropylene, TPE, NBR, stainless steel Certificates CE; 1935/2004/EC
Features
- Delivery rate of 7.6 liters per minute with free discharge (no back pressure)
- Automatically switches off at 5.5 bar (80 PSI)
- Self-priming up to 3 m
- Stops automatically when the tank or bag is empty
Product Details
If you are unsure about material compatibility between the pumped liquid and the materials in contact with it, verify compatibility before commissioning the pump.
-
