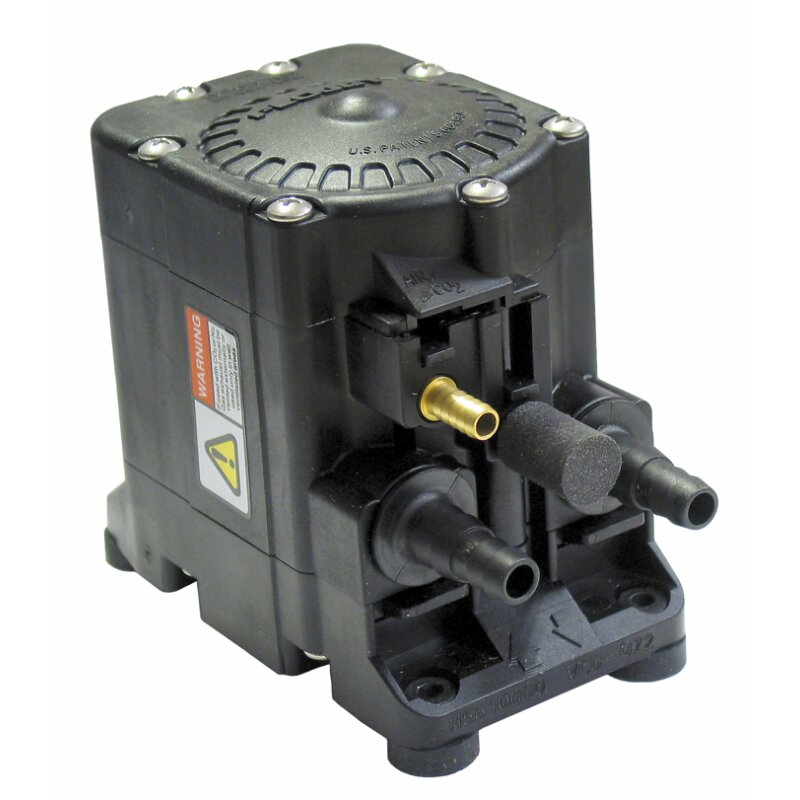

The Flojet G575225A is a G57 series air-operated double diaphragm pump rated for 26.5 L/min free-flow delivery and automatic shutoff at 6.9 bar (100 PSI). It is self-priming up to 4.5 m, dry-run safe, and specified for a maximum temperature of 49°C, with 1/2-inch hose connections for the pumped fluid and a 6 mm (1/4-inch) air hose connection. The pump uses Santoprene diaphragms and valves with EPDM O-rings, supports solids up to 3.2 mm, and measures 11.6 x 8.2 x 14.9 cm with a listed shipping weight of 1.00 kg.
- Description
- Ask a Question
-
G57 Series Air-Operated Double Diaphragm Pump
The Flojet G575225A is an air-operated double diaphragm pump from the G57 series, designed for a wide range of applications where compressed air drive, self-priming operation, and dry-run capability are required.
Technical Specifications
Series G57 Pump Type Air-operated double diaphragm pump Delivery Rate (Free Discharge) 26.5 L/min (without back pressure) Output 26 L/min Automatic Shutoff Pressure 6.9 bar (100 PSI) Self-Priming Up to 4.5 m Dry-Run Capability Dry-run safe Max Temperature 49°C Fluid Connection 1/2 inch hose Air Connection 6 mm (1/4 inch) hose Max Solid Size Up to 3.2 mm Diaphragms and Valves Material Santoprene O-Rings Material EPDM Design Corrosion-resistant sanitary design Dimensions (H x W x L) 11.6 x 8.2 x 14.9 cm Shipping Weight 1.00 kg Brand Flojet Product Portfolio Air-operated diaphragm pumps
Features
- Compressed air driven diaphragm pump with high free-flow delivery
- Automatic shutoff at 6.9 bar (100 PSI)
- Self-priming up to 4.5 m
- Dry-run safe operation
- Handles solids up to 3.2 mm
- Santoprene diaphragms and valves with EPDM O-rings
- Corrosion-resistant sanitary design
Product Details
If there is any uncertainty regarding material compatibility between the pump components and the pumped liquid, confirm compatibility before putting the pump into operation.
-
