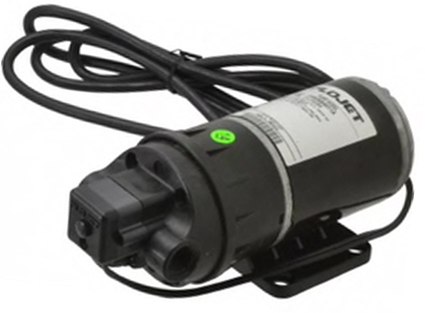

The Flojet D3835B7011A Duplex II diaphragm pump is a 115V AC unit with a power cord and plug, a high-pressure cam, and a 100 PSI pressure switch for demand (intermittent-duty) operation. It features polypropylene body construction with a Buna diaphragm and Buna check valve, plus 3/8 inch NPT female inlet and discharge ports. The pump is self-priming up to 8 ft (2.4 m), can run dry without damage, has a maximum fluid temperature of 140°F, and weighs 6 lb.
- Description
- Ask a Question
-
Flojet Duplex II Diaphragm Demand Pump With Pressure Switch
The Flojet D3835B7011A is a Duplex II series diaphragm pump designed for general industrial use, including liquid transfer, spraying, cooling, circulation, filtration, and dispensing. It is built with a polypropylene pump body and Buna elastomer components, and it uses a demand-style pressure switch to automatically stop and restart the pump based on discharge pressure.
Technical Specifications
Series Duplex II Pump Type Diaphragm Pump Body Construction Polypropylene Diaphragm Material Buna Check Valve Material Buna Cam High Pressure Cam Pressure Switch Setting (Off Set Point) 100 PSI Motor Voltage 115V AC Motor Power cord and plug Inlet Port 3/8 inch NPT Female Discharge Port 3/8 inch NPT Female Self-Priming Up to 8 ft (2.4 m) Maximum Fluid Temperature 140F Weight 6 lb Maximum Inlet Pressure 30 PSI (2.1 bar) Recommended Inlet Strainer Minimum 40 mesh strainer or filter Check Valve Requirement (If Used) Cracking pressure no more than 2 PSI (0.14 bar)
Features
- Demand operation with pressure switch control (intermittent duty)
- Shuts off automatically when discharge is closed and pressure reaches 100 PSI
- Self-priming up to 8 ft (2.4 m)
- Can run dry without damage
- Pump head can be rotated in 90 increments to simplify plumbing
Product Details
This pump is intended for intermittent duty cycles and can be run continuously for short periods of time. Do not use it to pump flammable fluids (including gasoline, kerosene, and fuel oil) and do not operate it in an explosive environment. For best results, mount the unit in a dry, adequately ventilated area and shield it from water, dust, sunlight, and washdown spray when installed outdoors.
For priming, keep the discharge line open to allow trapped air to escape and avoid airlock. Use flexible hose with the correct pressure rating and fluid compatibility; the guidance provided specifies tubing of at least 3/8 inch ID and at least 20 inches long to reduce stress on the ports.
Available part referenced: Catalog # 20914-001A, Check Valve Assembly Kit (Duplex II Series Pumps, 115 VAC).
-
