The Flojet D3121B1211 Duplex II diaphragm pump is a 12V DC unit with polypropylene body construction, a Buna diaphragm, and Buna check valves. It uses a low pressure cam, has no switch, and includes a 30 PSI pressure bypass via an external bypass system. Ports are 3/8 inch NPT female inlet and 3/8 inch NPT female discharge; self-priming is rated up to 8 ft (2.4 m), maximum fluid temperature is 140°F, and pump weight is 5 lb.
- Description
- Ask a Question
-

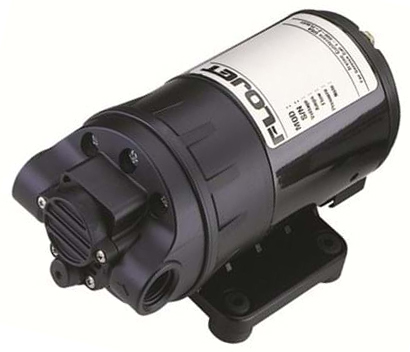

Flojet Duplex II 12V DC Diaphragm Pump Unit
The Flojet D3121B1211 is a Duplex II series diaphragm pump designed for general industrial use across a range of applications such as liquid transfer, spraying, cooling, circulation, filtration, and dispensing. It is built with a polypropylene pump body and Buna elastomer components, and uses an external bypass system to bypass flow internally when pressure exceeds the bypass setting.
Technical Specifications
Series Duplex II Pump Type Diaphragm Pump Motor Voltage 12 Volt DC Body Material Polypropylene Diaphragm Material Buna Check Valve Material Buna Cam Low Pressure Cam Switch No Switch Pressure Bypass 30 PSI (external bypass system) Self-Priming Up to 8 ft (2.4 m) Max Fluid Temperature 140°F Inlet Port 3/8 inch NPT Female Discharge Port 3/8 inch NPT Female Weight 5 lb
Features
- Self-priming up to 8 ft (2.4 m)
- Run-dry capability without damage (as stated)
- External bypass system that bypasses flow internally when pressure is over 30 PSI
- New diaphragm design combined with new valve design to pull higher dry vacuum (as stated)
- Pump head can be rotated in 90-degree increments to simplify plumbing
Product Details
- Designed to continue running until power is manually turned off (no switch on the pump).
- Intended for intermittent duty cycles; not recommended for continuous duty service due to limited motor brush life.
- Not for use with flammable fluids (including gasoline, kerosene, fuel oil) and not for use in an explosive environment.
- Inlet pressure must not exceed 30 PSI (2.1 bar).
- If a check valve is installed in the plumbing, it must have a cracking pressure of no more than 2 PSI (0.14 bar).
- Use of a minimum 40 mesh strainer or filter in the inlet line is recommended to prevent debris entry.
- Tubing guidance (as stated): minimum 3/8 inch inside diameter and at least 20 inches long; avoid crimping or kinking.
- Wiring note (as stated): on 12V DC, red lead is positive and black lead is ground; use T6 AWG wire minimum and a fuse to protect system wiring and components.
Available Parts
- Catalog # 21022-011 — Lower Housing Kit, Buna (Type: Duplex II Series Pumps 115 VAC)
-
