ID
1342069
$ 734.44
1-2 weeks delivery time
-
+
The Zipwake DU-EX E Series Distribution Expansion Unit extends the Dynamic Trim Control System, supporting up to six Series E interceptors or mixed Series E and S configurations. It is suitable for engine room installation, waterproof, oil-resistant, ignition-protected, and includes a 6 m power cable with integrated electrical protection.
- Description
- Ask a Question
-

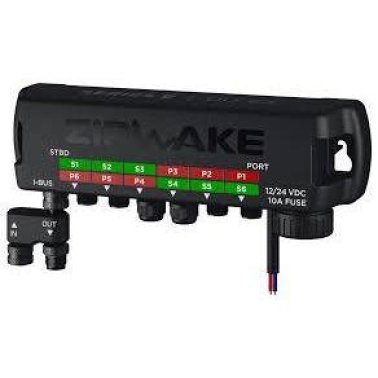

Zipwake 2012034 - DU-EX E Series Distribution Unit 6m Cable
The Zipwake DU-EX E Series Distribution Expansion Unit is used to extend the Dynamic Trim Control System, enabling support for up to six Series E interceptors or mixed Series E and Series S configurations.
The unit is suitable for engine room installation and is waterproof, oil-resistant, and ignition-protected. It includes a power cable and integrated electrical protection.

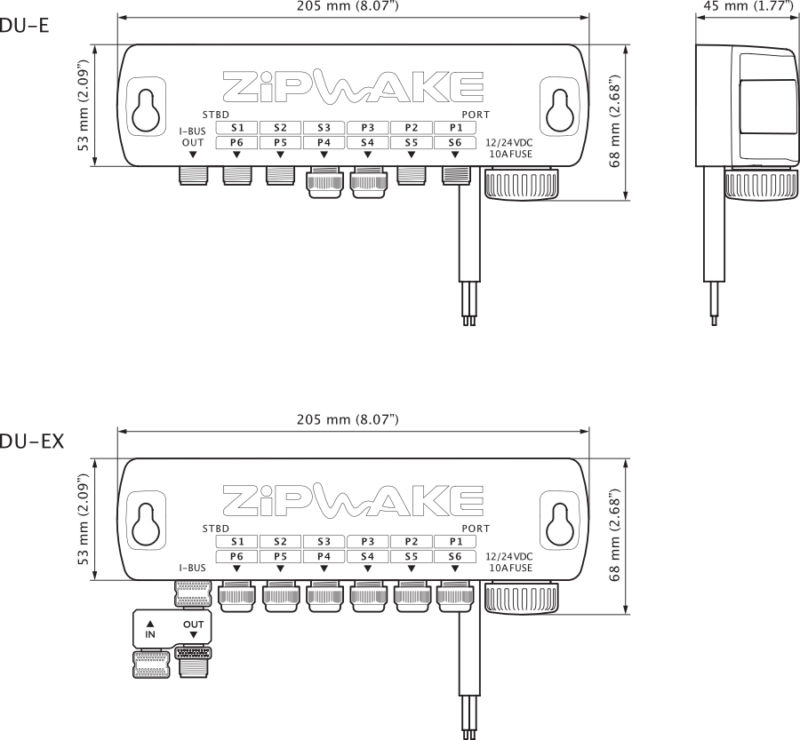

Connectors
- Six interceptor connections
- I-BUS OUT (power and CAN bus to control panels)
- 2-lead power cable
Technical Data
Model DU-E / DU-EX Supply Voltage 12–32 V DC Power Consumption 0.1 W max Protection Fuse 10 A ATO Power Cable Length 6 m, diameter 9 mm, 12 AWG Operating Temperature -20° to +85°C Storage Temperature -40° to +90°C Waterproof Rating IP67 with cables or protective caps mounted Oil Resistance Common engine fluids Compliance CE, FCC, SAE J1171 ignition protected Weight 1.1 kg including power cable
Brand: Zipwake
Article: 2012034 -
