ID
1342076
$ 1,915.01
1-2 weeks delivery time
-
+
The Zipwake 2012241 Integrator Module centralizes control for modern boats, reducing dashboard clutter and enabling advanced system integration. It connects to multiple multifunction displays and smart devices, supports wireless operation via the Zipwake app, and features a compact, waterproof design with simple installation.
- Description
- Ask a Question
-

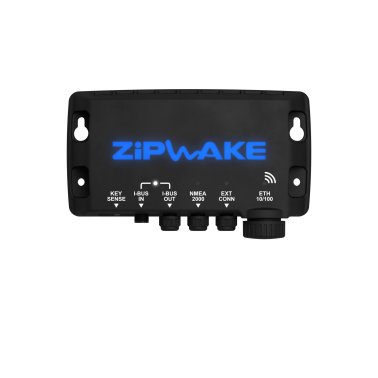

Zipwake 2012241 - Integrator Module
As modern boat designs move toward cleaner dashboards, larger displays, and deeper system integration, the Zipwake Integrator Module provides a future-ready solution. It is designed to centralize control, reduce clutter, and enable advanced integration across multiple onboard systems.
Seamless System Integration
The Integrator Module connects the Zipwake system to multiple multifunction displays (MFDs) from different manufacturers and can also link wirelessly to smart devices. This flexibility keeps dashboards tidy while allowing operation through touchscreens or up to three dedicated control panels with control wheels. A built-in CAN interface supports additional external system integration. Compatibility should be verified with the MFD manufacturer.
Wireless Connectivity
With its integrated wireless interface, the module allows full system configuration, operation, monitoring, and software updates through the Zipwake mobile application on a smartphone or tablet.
Easy Installation Anywhere

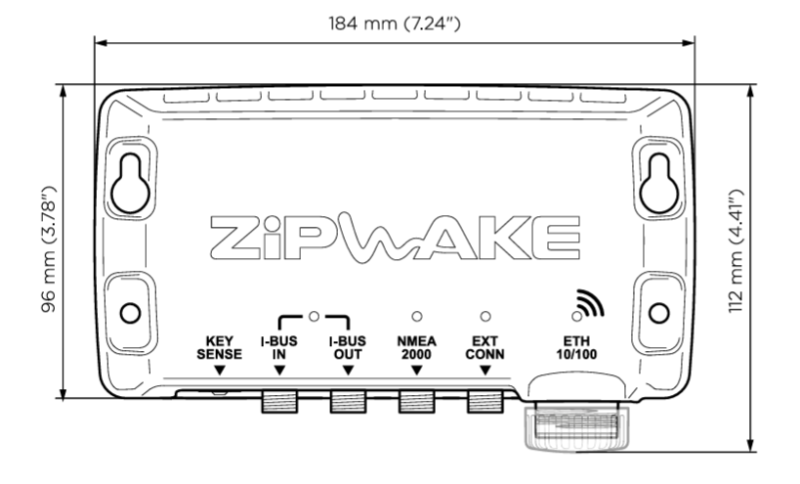

Slightly larger than a postcard, the compact module can be installed discreetly behind the helm or dashboard, on the flybridge, or in the engine room. It is waterproof and includes a special Ethernet connector collar for reliable sealing of standard Ethernet cables. Connection to an MFD is handled through a single cable.
Technical Specifications
Model IM Indicators RGB LEDs for each communication interface (x4), RGB backlit logo Internal Sensors 3D Gyro, 3D Accelerometer, Compass Supply Voltage 12 – 32 V DC Power Consumption 4 W max Operating Temperature -20° to +85°C (-4° to +185°F) Storage Temperature -40° to +90°C (-40° to +194°F) Waterproof Rating IP67 Compass Safe Distance 0.5 m (1.7 ft) Compliance CE, FCC, SAE J1171 Ignition Protected Weight 0.35 kg (0.77 lbs)
Brand: Zipwake
Article: 2012241 -
