ID
1342067
$ 1,915.41
1-2 weeks delivery time
-
+
Zipwake CP-E E Series Control Panel with 15 m cable offers intuitive manual and automatic control of trim, heel, and heading via dual control wheels and an AUTO mode. It features integrated GPS and gyro sensors, a 2.8 inch color display, multiple interfaces, IP67/IP64 protection, and operates on 12–32 V with 10 W max consumption. Weight 0.22 kg. Brand Zipwake, article 2012032.
- Description
- Ask a Question
-
Zipwake 2012032 - CP-E E Series Control Panel 15m Cable
The ZIPWAKE CP-E E Series Control Panel features two dedicated control wheels for fast and intuitive manual control of running trim, heel, or heading. The system normally operates in automatic mode, activated by a single press of the AUTO button.

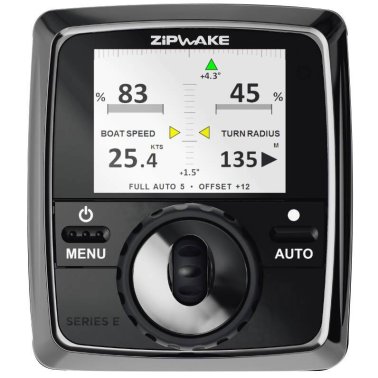

In automatic mode, the integrated high-frequency GPS, 3D gyro sensors, and robust motion controller dynamically eliminate uncomfortable and dangerous pitch and roll. A 2.8” sunlight-readable color display continuously shows boat speed, turning radius, pitch and roll angles, and interceptor positions.

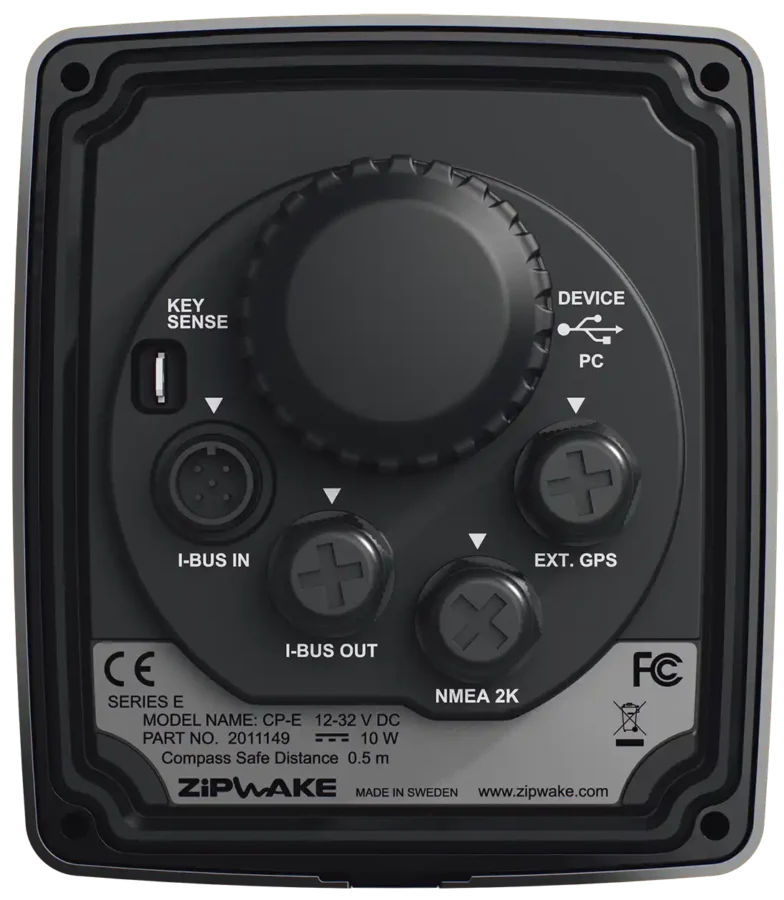

The waterproof panel is designed for harsh marine environments. Connectors for peripherals are located on the rear of the panel, and a protected USB interface allows future software upgrades.
Interfaces
- I-BUS IN (CAN bus)
- I-BUS OUT (CAN bus)
- NMEA 2000
- Key sense
- USB Device Port (Type A)
- USB Host Port (Type B)
- External GPS (NMEA 0183 / RS232 auto baud-rate sensing)
Technical Data
Model CP-E Display 2.8” IPS color TFT LCD, 320 × 240 px, anti-reflection coated Internal Sensors 5 Hz GPS, 3D gyro, 3D accelerometer, ambient light Supply Voltage 12–32 V DC Power Consumption 10 W max Operating Temperature -20° to +85°C Storage Temperature -40° to +90°C Waterproof Rating IP67 / IP64 (front / back) Compass Safe Distance 0.5 m Compliance CE, FCC Weight 0.22 kg Mounting Surface, flush or gimbal bracket
Brand: Zipwake
Article: 2012032 -
