ID
1342068
$ 639.72
1-2 weeks delivery time
-
+
The Zipwake DU-E E Series Distribution Unit connects to the main control panel or integrator module and is designed for engine room installation. It is waterproof, oil-resistant, and ignition-protected, with a 6 m power cable and built-in fuse protection. The system can be expanded with the DU-EX unit to connect up to six Series E interceptors or mixed Series E and S setups.
- Description
- Ask a Question
-

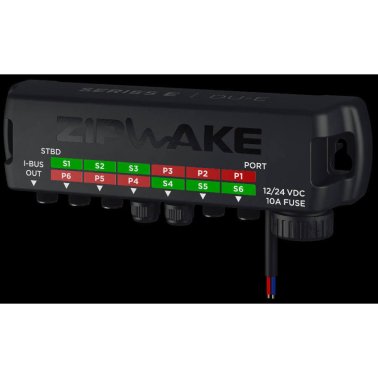

Zipwake 2012033 - DU-E E Series Distribution Unit 6m Cable
The Zipwake DU-E E Series Distribution Unit connects to the main control panel or integrator module and is designed for installation in engine rooms.
The unit is waterproof, oil-resistant, and ignition-protected. A power cable is included for direct battery connection, and built-in electrical protection is provided via an integrated fuse.
The system can be expanded using the Distribution Expansion Unit (DU-EX), allowing connection of up to six Series E interceptors or mixed Series E and Series S installations.
Connectors
- Six interceptor connections
- I-BUS OUT (power and CAN bus to control panels)
- 2-lead power cable
Technical Data

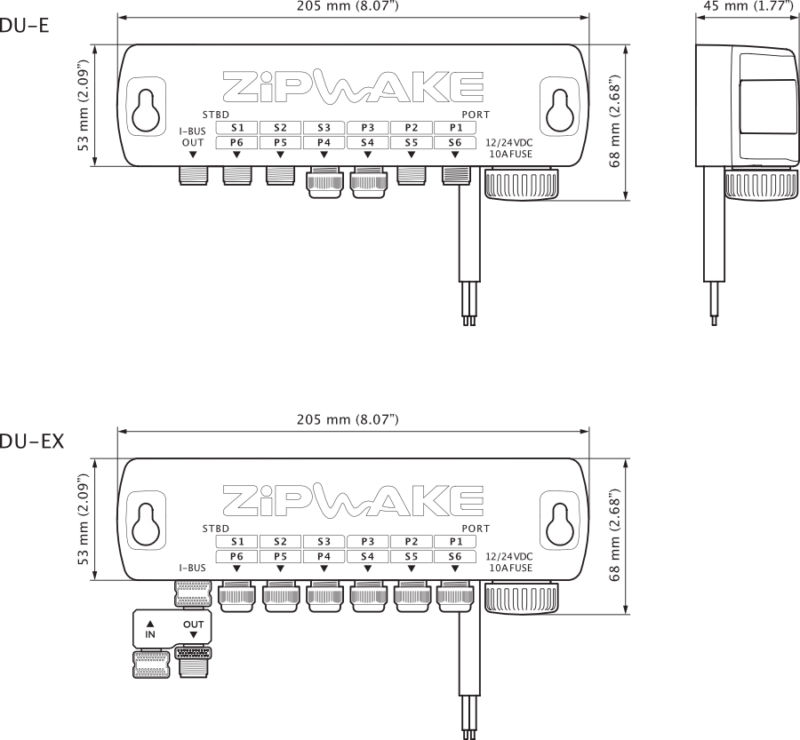

Model DU-E / DU-EX Supply Voltage 12–32 V DC Power Consumption 0.1 W max Protection Fuse 10 A ATO Power Cable Length 6 m, diameter 9 mm, 12 AWG Operating Temperature -20° to +85°C Storage Temperature -40° to +90°C Waterproof Rating IP67 with cables or protective caps mounted Oil Resistance Common engine fluids Compliance CE, FCC, SAE J1171 ignition protected Weight 1.1 kg including power cable
Brand: Zipwake
Article: 2012033 -
