The Isotemp 601631QX00003 Slim Square 16L marine water heater combines a compact 4.2-gallon stainless-steel tank with a 230V/750W immersion heater, engine-water heat exchanger and integrated mixing valve. Its space-efficient square design and low-mounted heating components ensure uniform heating and reliable hot-water delivery in confined installation spaces.
- Description
- Ask a Question
-

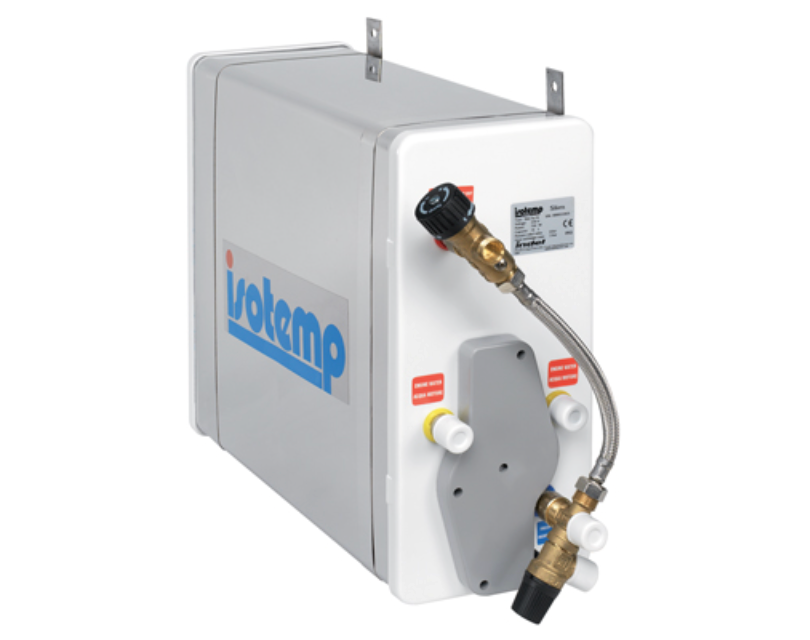

Isotemp 601631QX00003 Slim Square 16L Water Heater 230V / 750W with Mixing Valve
The Isotemp 601631QX00003 Slim Square 16L (4.2-gallon) marine water heater is designed for vessels that require efficient hot-water production in tight installation environments. Its compact square footprint allows flexible mounting options, while the brushed stainless-steel exterior provides long-term protection against corrosion in marine conditions.
Internally, the heater positions both the 230V / 750W immersion element and the engine-water heat exchanger at the lowest point of the tank, maximizing heat transfer and ensuring uniform temperature distribution. The inlet and outlet ports are engineered to minimize cold-water mixing, increasing the effective usability of stored hot water. An integrated thermostat-controlled mixing valve provides safe, consistent outlet temperature.Key Features
- Compact Slim Square marine water heater with 16-liter (4.2-gallon) capacity.
- 230V / 750W immersion heating element.
- Square form factor ideal for restricted installation spaces.
- Engine-water heat exchanger for heating during engine operation.
- Integrated thermostat-controlled mixing valve.
- Optimized cold-/hot-water ports reducing internal mixing.
- Low-mounted heating components for uniform temperature distribution.
- Brushed stainless-steel tank designed for marine durability.
Technical Specifications
Part Number 601631QX00003 Model Slim Square 16L Capacity 16 L / 4.2 gallons Voltage / Power 230V AC / 750W Tank Material Brushed stainless steel Dimensions Height: 16.75 in
Width: 7.25 in
Depth: 23.25 inUnit Weight 41 lbs Volume (Cubic Feet) 4.2 Special Instructions Includes thermostat-controlled mixing valve
Included in the Package
- Isotemp Slim Square 16L stainless-steel water heater
- 230V / 750W immersion heating element
- Engine-water heat exchanger connections
- Thermostat-controlled mixing valve
- Installation and safety documentation
The Isotemp Slim Square 16L 230V model provides efficient hot-water performance, uniform heating and space-saving installation, making it ideal for compact engine rooms and smaller vessel layouts requiring reliable marine hot-water systems.
Documents
Isotemp Basic Slim Water Heater Manual Size: 6,6 MbIsotemp Basic Slim Water Heater Spare Parts List Size: 798,6 Kb -
