ID
1303235
$ 1,578.65
1-2 weeks delivery time
-
+
The Isotemp 605023B000003 Basic 50L marine water heater features a 13-gallon stainless-steel tank with a 115V/750W immersion heater and an integrated mixing valve. With low-mounted heating components for uniform temperature distribution and optimized inlet/outlet design to reduce cold-water mixing, it delivers high-capacity output suitable for larger onboard hot-water systems.
- Description
- Ask a Question
-

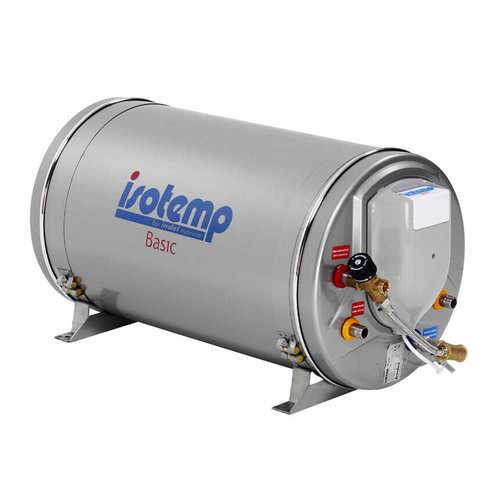

Isotemp 605023B000003 Basic 50L Water Heater 115V / 750W with Mixing Valve
The Isotemp 605023B000003 Basic 50L (13-gallon) marine water heater is part of the high-performance Isotemp Basic series, offering large hot-water capacity and reliable heating for medium and large vessels. Its brushed stainless-steel tank houses a 115V / 750W immersion heater and an engine-water heat exchanger positioned at the lowest point of the cylinder to ensure uniform heating across the full volume.
With an inlet/outlet configuration engineered to reduce mixing between incoming cold water and stored hot water, the heater provides a significantly higher amount of usable hot water. A thermostat-controlled mixing valve is included to maintain stable and safe outlet temperature during operation.Key Features
- 50-liter (13-gallon) high-capacity stainless-steel marine water heater.
- 115V / 750W immersion heating element.
- Integrated thermostat-regulated mixing valve.
- Low-mounted heater and heat exchanger for uniform heating efficiency.
- Optimized inlet/outlet geometry reduces cold-water intrusion.
- Durable brushed stainless-steel construction for long-term marine use.
- Suitable for larger yachts, cruisers and long-range vessels.
Technical Specifications
Part Number 605023B000003 Model Basic 50L Water Heater Capacity 50 L / 13 gallons Voltage / Power 115V AC / 750W Tank Material Brushed stainless steel Dimensions Length: 31 in
Outside Diameter (OD): 16 inUnit Weight 55 lbs Volume (Cubic Feet) 13 Special Instructions Includes thermostat-controlled mixing valve
Included in the Package
- Isotemp Basic 50L stainless-steel water heater
- 115V / 750W immersion heating element
- Engine-water heat exchanger connections
- Thermostat-controlled mixing valve
- Installation and safety documentation
The Isotemp Basic 50L 115V water heater delivers large hot-water capacity, stable temperature regulation and durable marine-grade construction—an ideal solution for vessels requiring reliable, high-volume onboard hot-water production.
Documents
Isotemp Basic Slim Water Heater Manual Size: 6,6 MbIsotemp Basic Slim Water Heater Spare Parts List Size: 798,6 Kb -
